Introducing Fortress' mGard Modular Robust
Trapped Key Interlocks for Heavy Duty Applications!

Fortress' mGard Modular Robust Trapped Key Interlocks for Heavy Duty Applications

Trapped key interlocking is a tried and tested method of mechanically
safeguarding dangerous machines and hazardous processes.

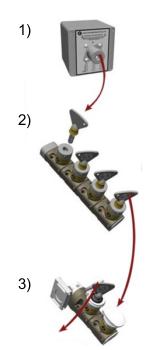

Solve your safety issues by selecting the required products in order of the steps shown here:
  • Power and Control Isolation
    Identify the energy sources to be isolated and/or any hazard that cannot immediately be isolated such as; heat, pressure, radiation or machine rundown time.
  • Key Exchange
    Identify the type and number of access points.
    The modular system allows the safeguarding of potentially hazardous areas without the need of wiring. All mechanical mGard configurations are also suitable for use in areas where explosive or flammable gases for dust particles may be present. Key Exchange and Door Lock Units can easily be extended with an extension module (XMA).
  • Door Locks and Actuators
    Identify the type of access point; part body or full body access doors with or without the use of personal safety keys (to prevent accidental lock in).
Fortress' mGard Modular Robust Trapped Key Interlocks
Use Fortress' mGard Product Builder Walker Industrial

Specifications:

  • Resistant to dust and tolerant of continuous and frequent grinding
  • Factory lubricated with WD40 or equivalent
  • SS and SLS units use a 12W dc solenoid, 110V units incorporate a bridge rectifier
  • Max temperature at 55° C with peaks up to 60° C (24 hr)
  • Min temperature at -5° C under normal use, -25° C if there is no excessive shock
  • mBob adaptor can be used with DM, XM & BM
  • Standard 20A switch will work down to 5mA at 20V
  • Interlocks good for years of extended use even with cement present
  • 6A switch with gold plated contacts available (1mA at 1V)
  • 20A Approvals BS, CCC, CSA, GOST, IEC, UL
  • 32A Approvals BS, CSA, GOST, IEC, UL
  • 63A Approvals BS, CSA, GOST, IEC, UL
  • 150A Approvals BS, CSA, GOST, IEC, UL
