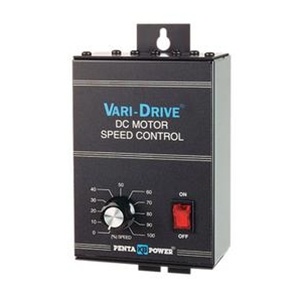

KBWM-120 KB Electronics 115 VAC, thru 0.33 HP, 90 VDC ARM (9380)

KBWM-120 KB Electronics 115 VAC, thru 0.33 HP, 90 VDC ARM (9380)
KBWM-120

Price: $112.70
Manufacturer SKU: KBWM-120
Manufacturer ID: 9380



Availability: Normally Stocked
Part Number: KBWM-120
Qty:

Description

KBWM-120 KB Electronics 115 VAC, thru 0.33 HP, 90 VDC ARM (9380)

Plug-in Horsepower Resistor Required The control must have a Plug-in Horsepower Resistor installed; purchased separately
Plug-in Line Fuse Included Fuse is included with the control
Plug-in Armature Fuse Available Provisions for mounting the fuse is provided, but the fuse is not included with the control. Plug-in Armature Fuses purchased separately


pdf Consult the Plug-in Horsepower Resistor and Plug-in Fuse Selection Charts for proper sizing based on motor horsepower and amperage.
KBWM120
Additional Product Information

The KB Electronics KBWM control is a compact version of the Multi Drive (KBMD). The control is packaged in an all-metal NEMA-1 / IP 50 enclosure. This unidirectional SCR drive utilizes the KBMM speed control module, which prevents motor failure due to demagnetization, and contains AC line and armature fusing and a barrier terminal connection block. The KB Plug-In Horsepower Resistor® automatically calibrates IR Comp and CL. Dimensions (L x W x H approx.): 5.3" x 3.7" x 2.9".
