Turck's Miniature Temperature Transmitters Feature an
Integral M12 Connection and a Pre-Scaled 4-20 mA Output!

TURCK TTM Miniature Temperature Sensors at Walker Industrial

A convenient M12 eurofast connection requiring no special cables, and comes in 4 temperature ranges of 0-100°C, -50-50°C, 0-150°C, and -50-150°C!

Benefits of using TURCK's TTM series transmitters:

  • Miniature temperature transmitters come pre-scaled so there is no need for adjustment and eliminates the need for a RTD PLC input card.
  • Four standard ranges from -5 to 50°C, 0 to 100°C, -50 to 150°C and 0 to 150°C.
  • 4-20 mA output with 4-pin M12 eurofast connector.
  • Utilizes the same Pt-100 technology as TURCK's other temperature products.
  • Comes in 3 mm and 6 mm probe options in lengths of 13 mm, 24 mm, 50 mm, 100 mm and 150 mm.
  • Commonly used in OEM applications, hydraulics, cooling lines, and lubrication applications.
  • IP67 protection and stainless steel sensor material suitable for food and beverage industry.
  • Ambient and storage temperature of 40 to +80°C.
  • Pt 1000 Platinum measuring element (DIN EN 60751).
Migatron's versatile ultrasonic sensors

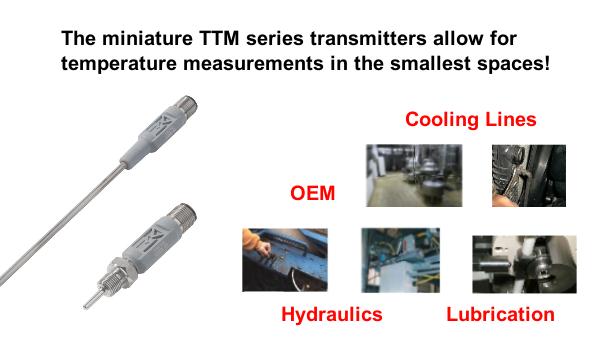

TURCK TTM Miniature Temperature Transmitter Applications

Specifications:

  • 10-24 VDC Operating Voltage
  • 4-20 mA Current Output
  • Short Circuit Protection
  • Reverse Polarity Protection
  • Class A Accuracy
  • 100 bar Pressure Resistance
  • Fully Encapsulated
  • IP67 Rated to Withstand Extreme Ambient Conditions
  • 2-wire Technology
  • Integrated Processing Electronics
  • Pt1000 Measuring Element
  • Process Connection via Clamping Ring, Thermowell or G1/8" Male Thread
  • Customized Solutions Upon Request

For more information or to place an order, please give us a call at 800-876-4444 or 203-426-7700. To purchase online please click here.
