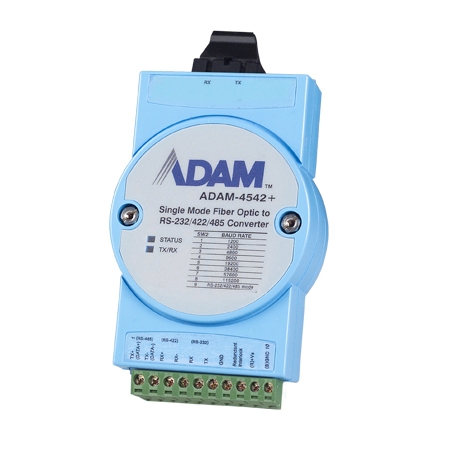

ADAM-4542+-BE - Advantech CIRCUIT MODULE, Fiber Optic to RS-232/422/485 Converter

ADAM-4542+-BE - Advantech
ADAM-4542+-BE

Price: $626.90
Manufacturer SKU: ADAM-4542+-BE



Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-4542-BE
Qty:

Description Technical Specs

ADAM-4542+-BE - Advantech CIRCUIT MODULE, Fiber Optic to RS-232/422/485 Converter
Fiber optic transmission offers the benefits of wide bandwidth, immunity to EMI/RFI interference, and secure data transmission. ADAM-4542+ can be used as a RS-232/422/485 point-to-point or point-to-multipoint connection for transmitting and converting full/half-duplex signals and their equivalents within a fiber optic environment. Fiber optics is the perfect solution for applications where the transmission medium must be protected from electrical exposure, lightning, atmosphere. ADAM-4542+ is specifically designed to link various machinery equipped with a RS-232/422/485 communication port (such as computer systems or manufacturing machines). Using standard SC type fiber connector, the module's fiber optic ports can accommodate a wide range of fiber optic cable sizes, including 62.5/125, 250/125, 100/140 mm.

Single-mode Fiber Optic to RS-232/422/485 Converter
  • Easily mounted on a DIN-rail, panel or piggyback
  • Transmission speeds of up to 115.2 kbps
  • Half/Full-duplex, bidirectional transmission mode
  • Avoids lightning strikes and EMI/RFI interference
  • Prevents damage from electrostatic discharge
  • Stable and error-free data transmission
  • Automatic internal RS-485 bus supervision
  • No external flow control signals required for RS-485
  • Transient suppression and over-current protection on RS-422/485 data lines
  • Reserved space for termination resistors
  • LED for power and data flow indication
  • Power requirement: +10 to + 30 VDC
pdfDownload the ADAM-4542-BE brochure in *.pdf format
