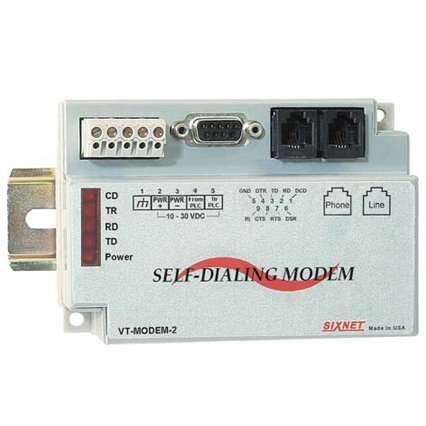

VT-MODEM-2WW Sixnet PLC Self-Dialing and Auto-Answer 33.6K Phone Modem
No longer has CE mark certification. CANNOT be sold to countries within the European Economic Area (EEA) where the CE mark is a requirement.
SIXNET Industrial Telephone Modems eliminate the difficulties encountered with installing office-grade modems in industrial settings. These ruggedized modems connect to any PLC, RTU or other industrial equipment and provide the important features you have been looking for.
Product Highlights
- Rated for -30° to +70°C operation
- Proven in the toughest settings from pipelines In Alberta to remote locations in Sweden
- DIN Rail or flat panel mounting
- DC powered - No more bulky AC adapters
- Supports all PLCs, RTUs and other devices
- Compliant with telephone systems world-wide
| Telephone Line |
- Max. data rate 33.6 kbps for -1, -2, -3 & -4; 56 kbps for -5
- Compatibility V.90, V.92 (-5 only); V.34, V.32 bis, V.32, V.22; V.22A/B, V.23, V.21, Bell 212A and 103
- Data compression V.44; V.42 bis, MNP 5
- Error correction V.42 MNP 2-4
- Max. fax rate 14.4 kbps for -1, -2, -3 & -4; 33.6 kbps for -5
- Fax capabilities: V.17,V.29/V.27/V.21, FClass 1,1.0 (-1,-2,-3) V.34,V.17,V.29/V.27/V.21,FClass 1,1.0, 2, 2.0/2.1 (-4 and -5 only)
- Ringer & jacks 0.3 & RJ11 (line and auxiliary)
|
| RS232 Port |
- Max. RS232 rate 57.6kbps for -2 & -3; 115.2 kbps for -1 & -4; 230 kbps for -5
- RS232 (DCE) TD, RD, CTS, RTS, CD, DTR, DSR, RI, GND
- Command set standard AT and S register
- Status LEDs CD, DTR, RD, TD, Power
|
| PLC Discrete I/O Interface (VT-MODEM-2 ONLY) |
- "Trigger" input starts auto-dialing when TRUE
- Voltage range 9 to 30 VDC (6.5 mA at 24 VDC)
- Max OFF voltage 5 VDC
- "On-line" output is ON when connection exists
- Output type sourcing — switches supply power
- Output current 100 mA maximum
|
| RS422 / RS485 Port (VT-MODEM-3 ONLY) |
- RS422 mode supports 4 wire full duplex
- RS485 modes 2 or 4 wire party-line operation
- Signal rate up to 115.2 kbps
- RS422/485 up to 0.5 miles
|
| General Characteristics |
- Input voltage 10-30 VDC for -1, -2, -4 & 5; 10-52 VDC for -3
- Input current @ 24 VDC (typical)
- 50 mA (Sleep mode 30 mA): -1,-2,-3 (Rev.3)
- 75 mA (Sleep mode 50 mA): -4, -5
|
| Environmental |
- Operating Temp. -30° to 70°C (Storage: -40° to 85°C)
- Humidity 5% to 95% RH (non-condensing)
- Flammability UL 94V-0 materials
- DIN rail or panel mount
- Vibration IEC68-2-6
|
| Standards |
- Telecom Ratings: FCC part 68, Industry Canada CS03-8, CTR21 (98/482/EC); ACA TS 001; ACA TS 002
- Electrical Safety: UL 508, CSA C22.2/14; EN60950; AS/NZS3260
- EMI emissions: FCC part15, ICES-003, Class A; AS/NZS3548; EN61000-6-4, CE
- EMC immunity: EN61000-6-2, CE
- Hazardous locations (Zone 2): UL1604, CSA C22.2/213 (Class I, Div 2); EN60079-15 (Zone2, Cat. 3), CE (ATEX)
|
|
|
|
