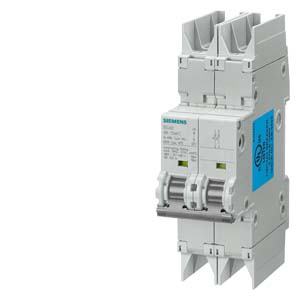

SIEMENS - 5SJ4220-7HG42 - MCB 5SJ4 2P 480/277 20A 10K C-TRIP

Specifications

• Length: 4.950000000 IN
• Width: 1.550000000 IN
• Height: 3.250000000 IN
• Weight: 0.747000000 LB
• Additional equipment possible: true
• Ambient temperature during operating: -25 °C
• Built-in depth: 70 mm
• Concurrently switching N-neutral: false
• Degree of protection (IP): IP20
• Explosion-proof: false
• Flush-mounted installation: false
• Number of poles (total): 2
• Over voltage category: 3
• Pollution degree: 3
• Rated current: 20 A
• Rated insulation voltage Ui: 440 V
• Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10 kA
• Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA
• Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 15 kA
• Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 15 kA
• Rated voltage: 400 V
• Release characteristic: C
• Voltage type: AC/DC
• Width in number of modular spacings: 2
