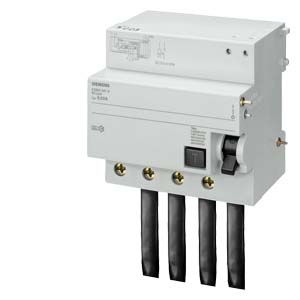

SIEMENS - 5SM2647-6 - MCKTBKR 4 POLE 80-100A 230-400VAC
Item #:
SIE 5SM2647-6
Product Info
Siemens
5SM2647-6
Manufacturer ID #: 754554780191
Returnable:
No
MCKTBKR 4 POLE 80-100A 230-400VAC 80/100A 4 POLE IFN 0,3A 400V TYPE A (PSE/SSF), DEPTH=70MM FI- BLOCK F. LS-SWITCH 5SX6+7
Specifications
- Weight: 1.504000000 lbs
- Country of Origin: Romania
- Ambient temperature during operating: -25 °C
- Anti-nuisance tripping version: true
- Connectable conductor cross section multi-wired: 6 mm²
- Connectable conductor cross section solid-core: 6 mm²
- Degree of protection (IP): IP20
- Delay adjustable: false
- Frequency: 50 Hz
- Leakage current type: A
- Nominal current: 100 A
- Nominal voltage: 400 V
- Number of poles: 4
- Pollution degree: 2
- Rated fault current: 0.3 A
- Rated fault current adjustable: false
- Rated insulation voltage Ui: 460 V
- With interlocking device: false
