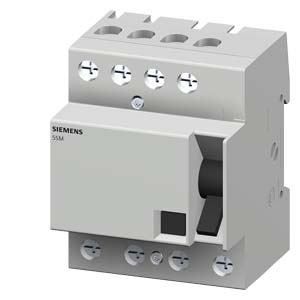

SIEMENS - 5SM3646-4 - RCCB,3+N-POLE,63A,400V,IFN 300MA,TYPE B
Item #:
SIE 5SM3646-4
Product Info
Siemens
5SM3646-4
Manufacturer ID #: 662643786606
Returnable:
No
RCCB,3+N-POLE,63A,400V,IFN 300MA,TYPE B
Specifications
- Length: 4.530000000 in
- Height: 3.540000000 in
- Weight: 1.202000000 lbs
- Country of Origin: Germany
- Additional equipment possible: true
- Ambient temperature during operating: -25 °C
- Built-in depth: 70 mm
- Connectable conductor cross section multi-wired: 1.5 mm²
- Connectable conductor cross section solid-core: 1.5 mm²
- Degree of protection (IP): IP20
- Explosion-proof: false
- Frequency: 50 Hz
- Leakage current type: B
- Mounting method: DIN rail
- Number of poles: 4
- Power loss: 2.6 W
- RAL-number (akin): 7035
- Rated current: 63 A
- Rated fault current: 0.3 A
- Rated voltage: 400 V
- Selective protection: false
- Short-circuit breaking capacity (Icw): 10 kA
- Short-time delayed tripping: true
- Surge current capacity: 3 kA
- Voltage type: AC
- Width in number of modular spacings: 4
- With interlocking device: true
