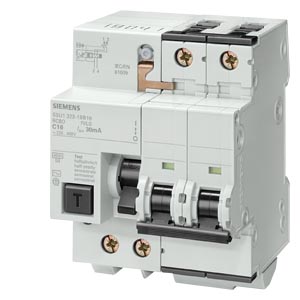

SIEMENS - 5SU1323-1BB06 - FI/LS PROT,TYPE AC(WS),30MA,4.5KA,2-P,6A
Item #:
SIE 5SU1323-1BB06
Product Info
5SU1323-1BB06, 5SU13231BB06
Siemens
5SU1323-1BB06
Manufacturer ID #: 754554850207
Returnable:
No
FI/LS PROT,TYPE AC(WS),30MA,4.5KA,2-P,6A IFN 30MA, 4,5KA, 2POLE C 6A TYPE AC (WS), D=70MM FI/LS-PROTECTOR
Specifications
- Length: 3.937000000 in
- Height: 3.270000000 in
- Weight: 1.098000000 lbs
- Country of Origin: Romania
- Anti-nuisance tripping version: true
- Built-in depth: 70 mm
- Concurrently switching N-neutral: true
- Connectable conductor cross section multi-wired: 1.5 mm²
- Connectable conductor cross section solid-core: 1.5 mm²
- Current limiting class: 3
- Degree of protection (IP): IP20
- Disconnection characteristic: Undelayed
- Flush-mounted installation: true
- Leakage current type: AC
- Number of poles (total): 2
- Number of protected poles: 2
- Pollution degree: 2
- Rated current: 6 A
- Rated fault current: 0.03 A
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Rated short-circuit breaking capacity acc. EN 61009: 4.5 kA
- Rated short-circuit breaking capacity Icn acc. EN 61009-1: 4.5 kA
- Rated short-circuit breaking capacity IEC 60947-2: 25 kA
- Rated voltage: 230 V
- Release characteristic: C
- Surge current capacity: 1 kA
- Voltage type: AC
- Width in number of modular spacings: 4
- With interlocking device: true
