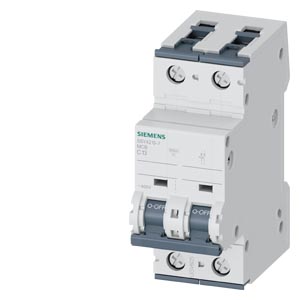

SIEMENS - 5SY4213-7 - SUP PTOR 5SY4 2P 480V 13A 5K C-TRIP
Item #:
SIE 5SY4213-7
Product Info
5SY4213-7, 5SY42137
Siemens
5SY4213-7
Manufacturer ID #: 754554875880
Returnable:
Yes
SUPPLEMENTARY PROTECTOR,2P,13A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 13 Amps, 480 VAC, Trip Characteristic Curve C, 36mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2
Specifications
- Length: 3.660000000 in
- Height: 3.270000000 in
- Weight: 0.719000000 lbs
- Country of Origin: Germany
- Additional equipment possible: true
- Ambient temperature during operating: -40 °C
- Built-in depth: 70 mm
- Concurrently switching N-neutral: false
- Connectable conductor cross section multi-wired: 0.75 mm²
- Connectable conductor cross section solid-core: 0.75 mm²
- Current limiting class: 3
- Degree of protection (IP): IP20
- Explosion-proof: false
- Flush-mounted installation: false
- Number of poles (total): 2
- Pollution degree: 3
- Rated current: 13 A
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 20 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 20 kA
- Rated voltage: 400 V
- Release characteristic: C
- Voltage type: AC
- Width in number of modular spacings: 2
