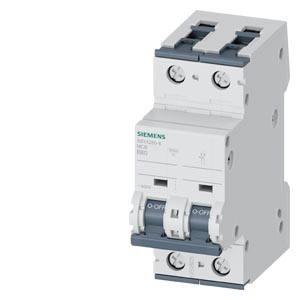

SIEMENS - 5SY4280-6 - SUP PTOR 5SY4 2P 480V 80A 5K B-TRIP

Specifications

• Length: 8.504000000 in
• Height: 3.230000000 in
• Weight: 0.747000000 lbs
• Country of Origin: Germany
• Additional equipment possible: true
• Ambient temperature during operating: -40 °C
• Built-in depth: 70 mm
• Concurrently switching N-neutral: false
• Connectable conductor cross section multi-wired: 0.75 mm²
• Connectable conductor cross section solid-core: 0.75 mm²
• Degree of protection (IP): IP20
• Explosion-proof: false
• Flush-mounted installation: false
• Number of poles (total): 2
• Pollution degree: 3
• Rated current: 80 A
• Rated impulse withstand voltage Uimp: 4 kV
• Rated insulation voltage Ui: 440 V
• Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10 kA
• Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA
• Rated voltage: 400 V
• Release characteristic: B
• Voltage type: AC
• Width in number of modular spacings: 2
