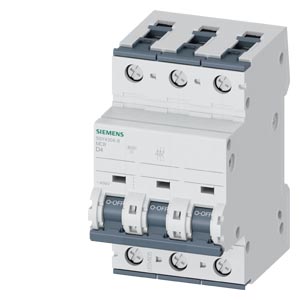

SIEMENS - 5SY4304-8 - SUP PTOR 5SY4 3P 480V 4A 5K D-TRIP
Item #:
SIE 5SY4304-8
Product Info
5SY4304-8, 5SY43048
Siemens
5SY4304-8
Manufacturer ID #: 754554876474
Returnable:
Yes
SUPPLEMENTARY PROTECTOR,3P,4A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 4 Amps, 480 VAC, Trip Characteristic Curve D, 54mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2
Specifications
- Length: 2.000000000 in
- Height: 3.150000000 in
- Weight: 1.010000000 lbs
- Country of Origin: Germany
- Additional equipment possible: true
- Ambient temperature during operating: -40 °C
- Built-in depth: 70 mm
- Concurrently switching N-neutral: false
- Connectable conductor cross section multi-wired: 0.75 mm²
- Connectable conductor cross section solid-core: 0.75 mm²
- Degree of protection (IP): IP20
- Explosion-proof: false
- Flush-mounted installation: false
- Number of poles (total): 3
- Pollution degree: 3
- Rated current: 4 A
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 35 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 35 kA
- Rated voltage: 400 V
- Release characteristic: D
- Voltage type: AC
- Width in number of modular spacings: 3
