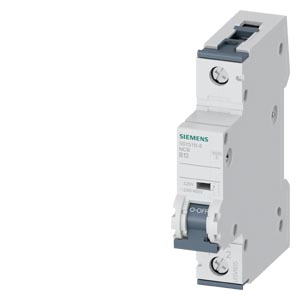

SIEMENS - 5SY5113-6 - SUP PTOR 5SY5 1P IEC 230V 13A 10K B-TRIP
Item #:
SIE 5SY5113-6
Product Info
5SY5113-6, 5SY51136
Siemens
5SY5113-6
Manufacturer ID #: 754554878355
Returnable:
No
SUPPLEMENTARY PROTECTOR,1P,13A,CURVE B Supplementary Protector, IEC Mini Circuit Breaker, 1 Pole, 13 Amps, 220 VDC, Trip Characteristic Curve B, 18mm Width, 70mm Depth, Not UL
Specifications
- Length: 3.661000000 in
- Height: 3.270000000 in
- Weight: 0.370000000 lbs
- Country of Origin: Germany
- Additional equipment possible: true
- Ambient temperature during operating: -40 °C
- Built-in depth: 70 mm
- Concurrently switching N-neutral: false
- Connectable conductor cross section multi-wired: 0.75 mm²
- Connectable conductor cross section solid-core: 0.75 mm²
- Current limiting class: 3
- Degree of protection (IP): IP20
- Explosion-proof: false
- Flush-mounted installation: false
- Number of poles (total): 1
- Pollution degree: 3
- Rated current: 13 A
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA
- Rated voltage: 400 V
- Release characteristic: B
- Voltage type: AC/DC
- Width in number of modular spacings: 1
