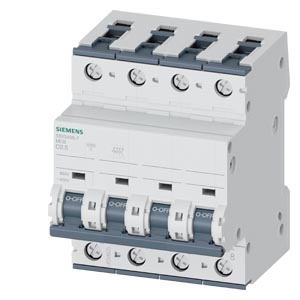

SIEMENS - 5SY5405-7 - CIRCUIT BREAKER UC10KA 4P C0.5
Item #:
SIE 5SY5405-7
Product Info
Siemens
5SY5405-7
Manufacturer ID #: 195125397576
Returnable:
No
Circuit breaker Universal current 880 V DC 400 V AC 10kA, 4-pole, C, 0.5 A max. 1000 V DC
Specifications
- Length: 3.740000000 in
- Height: 3.270000000 in
- Weight: 1.420000000 lbs
- Country of Origin: Germany
- Additional equipment possible: true
- Ambient temperature during operating: -40 °C
- Built-in depth: 70 mm
- Concurrently switching N-neutral: false
- Connectable conductor cross section multi-wired: 0.75 mm²
- Connectable conductor cross section solid-core: 0.75 mm²
- Current limiting class: 3
- Degree of protection (IP): IP20
- Explosion-proof: false
- Flush-mounted installation: false
- Number of poles (total): 4
- Pollution degree: 2
- Rated current: 0.5 A
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10 kA
- Rated voltage: 400 V
- Release characteristic: C
- Voltage type: AC/DC
- Width in number of modular spacings: 4
