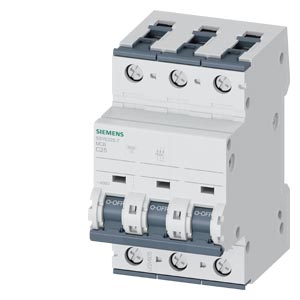

SIEMENS - 5SY6325-7 - SUP PTOR 5SY6 3P 480V 25A 5K C-TRIP
Item #:
SIE 5SY6325-7
Product Info
5SY6325-7, 5SY63257
Siemens
5SY6325-7
Manufacturer ID #: 754554931173
Returnable:
No
UL1077 SUP. PROT,6KA,3P,25A,C-TRIP MINIAT. CIRCUIT-BREAKER 4 6KA, 3POLE, C, 25A, D=70MM
Specifications
- Length: 3.800000000 in
- Height: 3.300000000 in
- Weight: 1.020000000 lbs
- Country of Origin: Germany
- Additional equipment possible: true
- Ambient temperature during operating: -25 °C
- Built-in depth: 70 mm
- Concurrently switching N-neutral: false
- Connectable conductor cross section multi-wired: 0.75 mm²
- Connectable conductor cross section solid-core: 0.75 mm²
- Current limiting class: 3
- Degree of protection (IP): IP20
- Explosion-proof: false
- Flush-mounted installation: false
- Number of poles (total): 3
- Pollution degree: 3
- Rated current: 25 A
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 6 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 6 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 15 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 15 kA
- Rated voltage: 400 V
- Release characteristic: C
- Voltage type: AC
- Width in number of modular spacings: 3
