SIEMENS - 5SY6450-6 - SUP PTOR 5SY6 4P 480V 50A 5K B-TRIP
Item #:
SIE 5SY6450-6
Product Info
5SY6450-6, 5SY64506
Siemens
5SY6450-6
Manufacturer ID #: 040892621341
Returnable:
Yes

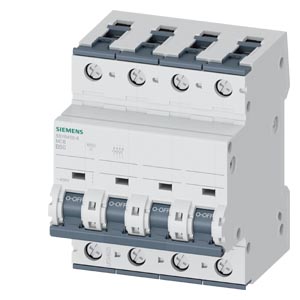

CIRCUIT BREAKER 400V 6KA, 4-POLE, B,50A, D=70MM
Specifications
- Length: 3.740000000 in
- Height: 3.270000000 in
- Weight: 1.442000000 lbs
- Country of Origin: Germany
- Additional equipment possible: true
- Ambient temperature during operating: -25 °C
- Built-in depth: 70 mm
- Concurrently switching N-neutral: false
- Connectable conductor cross section multi-wired: 0.75 mm²
- Connectable conductor cross section solid-core: 0.75 mm²
- Current limiting class: 3
- Degree of protection (IP): IP20
- Explosion-proof: false
- Flush-mounted installation: false
- Number of poles (total): 4
- Pollution degree: 3
- Rated current: 50 A
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 440 V
- Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 6 kA
- Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 6 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 10 kA
- Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 10 kA
- Rated voltage: 400 V
- Release characteristic: B
- Voltage type: AC
- Width in number of modular spacings: 4
