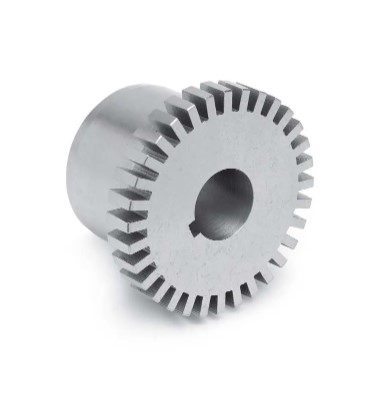

006617 - DODGE 006617 1070T HUB 2 1/4

006617 - DODGE
006617

Price: $184.73
Returnable: NOT RETURNABLE
Manufacturer SKU: 006617
Manufacturer ID: 782475380275


Availability: Normally Stocked
Part Number: 006617
Qty:

Description

Please note that this product does NOT qualify for free shipping and may require truck freight.

006617 - DODGE 006617 1070T HUB 2 1/4

006617

General
ATEX CERTIFIED
NO
COUPLING TYPE
Metallic
COUPLING STYLE
Grid
COUPLING SIZE
1070
SHAFT SPACING
Close Coupled
COUPLING COMPONENT
Hub
SHAFT ATTACHMENT
Bored To Size
ATEX CERTIFICATE
No
Sealing & Lubrication
LUBRICATION TYPE
Grease
Technical
AXIAL MISALIGNMENT
0.375 inch
ANGULAR MISALIGNMENT
0.5 degree [unit of angle]
ANGULAR MISALIGNMENT
0.5 º
AXIAL MISALIGNMENT
0.375 in
HORSEPOWER PER 100 RAT
13.9600 hp
RATED TORQUE
8800.0000 lbf
ANGULAR MISALIGNMENT
0.5000 º
PARALLEL MISALIGNMENT
0.0100 in
AXIAL MISALIGNMENT
0.3750 in
Dimensions
BORE DIAMETER
Actual 2.25 inch
LENGTH THROUGH BORE
3 inch
BORE TOLERANCE STANDARD
AGMA 9002
BORE DIAMETER
2.25 in
BORE DIAMETER ACTUAL
2.2500 in
BORE FIT
Clearance
BORE TOLERANCE STANDARD
AGMA 9002
BORE LENGTH
3.0000 in
