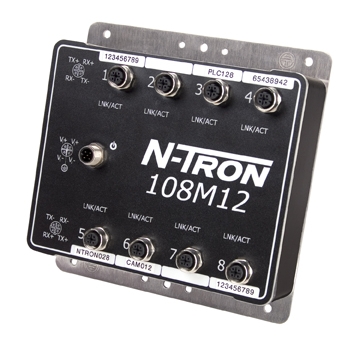

The N-Tron 108M12 is an IP67-rated, unmanaged industrial Ethernet switch. It is housed in a hardened, metal, bulkhead mountable enclosure rated for protection against dust, low/high pressure water jets, and temporary immersion in water. This switch offers eight 10/100BaseTX ports with M12 D-coded connectors and is designed for use in mission critical data acquisition, control, and Ethernet I/O applications.

PRODUCT FEATURES:

• Unmanaged Operation
• IP67 Rated Hardened Metal Enclosure
• Bulkhead Mountable (Optional DIN-Rail mounting)
• Dustproof
• Protection against low/high pressure water jets
• Temporary immersion in water
• American Bureau of Shipping (ABS) Type Approval
• EN50155 for Railway applications
• Eight 10/100BaseTX Ports
• M12 D-Coded Female 4 Pin Connectors
• Extended Environmental Speci?cations
  • -40C to 70C Operating Temperature
  • >2M Hours MTBF
• Store-and-forward Technology
• Supports Full/Half Duplex Operation
• Up to 1.6 Gb/s Maximum Throughput
• MDIX Auto Sensing Cable
• Auto Sensing Speed and Flow Control
• Full Wire Speed Communications
• Redundant Power Inputs (10-30 VDC)
• ESD Protection Diodes on all Ports
• Surge Protection Diodes on Power Inputs
• LED Link/Activity Status Indication
