111P - SymCom 1-Phase Pumpsaverplus 115V 1 3-1HP
111P - SymCom
111P

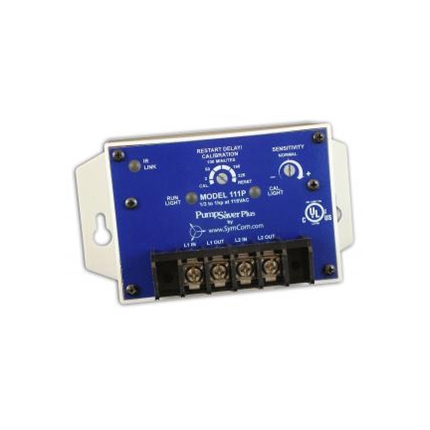

This is a family photo and may not be an accurate representation of the product.

Price: $183.71
Manufacturer SKU: 111P



Availability: Usually Ships in 3 to 5 Days
Part Number: 111P
Qty:

Description

111P - SymCom 1-Phase Pumpsaverplus 115V 1 3-1HP

The Model 111P
The Model 111P single-phase PumpSaver®Plus is a pump monitor designed to protect single-phase pumps from dry-well, dead-head, jammed impeller, rapid cy-cle and overvoltage and undervoltage conditions. The PumpSaver®Plus Model 111P protects 115 volt, 2 or 3 wire, 1/3 to 1 hp pumps.

A calibration adjustment allows the Model 111P to be calibrated to your specific pumping applications, thereby reducing the possibility of false or nuisance tripping. A proprietary microcontroller based voltage, power factor and current-sensing circuit constantly monitors for pow-er fluctuations, overcurrent and underload conditions. When an abnormality, such as loss of suction, is detected, the PumpSaver®Plus deactivates its output relay and di-rectly disconnects the pump motor. The PumpSaver®Plus then begins its user-selectable "Restart Delay" (dry-well recovery) timer. When the timer expires or power is re-moved and reapplied, the PumpSaver®Plus reactivates its output relay, allowing the pump to turn back on.
An infrared LED communicates directly with a hand-held diagnostic tool called the Informer (sold separately).

NOTE: The PumpSaver®Plus models have a sensitivity adjustment for the dry-well trip point. After calibration is done, you can adjust the sensitivity for the dry-well/dead-head trip point from 70-90% of the full load. This makes the unit even more adaptable to varying pumping applications. If you have a very low producing well, you increase the sensitivity closer to the 90% mark, or if you have a very heavy producing well, you would decrease the sensitivity around the 70% mark.
