201-100-DPDT - SymCom 3-Phase 11-Pin Plug-In Voltage Monitor 95-120V DPDT

Home > Manufacturers > P - S > SYMCOM > SYMCOM Electronic Controls & Protection > 3-Phase Voltage Monitors >

201-100-DPDT

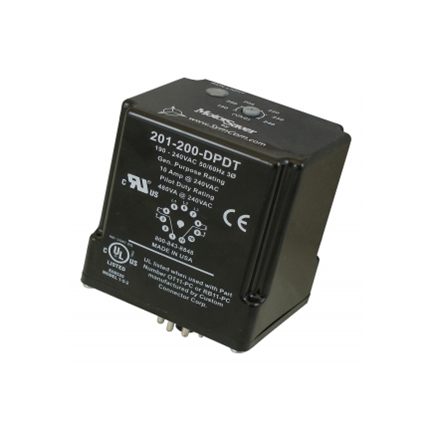

This is a family photo and may not be an accurate representation of the product.

Price: $133.85

Returnable: NOT RETURNABLE
Manufacturer SKU: 201-100-DPDT

Availability: Usually Ships in 3 to 5 Days
Part Number: 201-100-DPDT

Qty:

Description

201-100-DPDT - SymCom 3-Phase 11-Pin Plug-In Voltage Monitor 95-120V DPDT

The Model 201-xxx-DPDT Family
An 11-pin octal base plug-in voltage monitor designed to protect 3-phase motors regardless of size. The 201-100-DPDT is used on 95-120VAC, 50/60Hz motors and the 201-200-DPDT is used on 190-240VAC, 50/60Hz motors to prevent damage caused by incoming voltage problems. The units feature two isolated sets of contacts that are ideal for use with two control circuits with different voltages.

The unique microcontroller-based voltage and phase-sensing circuit constantly monitors the voltages to detect harmful power line conditions When a harmful condition is detected, the MotorSaver's output relays are deactivated after a specified trip delay. The output relays reactivate after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

This unit is also available with a shorter trip delay and faster restart delay. The 201-xxx-DPDT-60mS has a trip delay of 0.5 seconds and a restart delay of 60 milliseconds.

Features:

Low voltage protection
Single-phase protection
Reverse-phase protection
Voltage unbalance protection
Two isolated Form C relays (DPDT)
Diagnostic LED
11-pin plug-in; DIN rail or surface mount

Auxiliary Products:

11-pin octal socket P/N: OT11-PC
