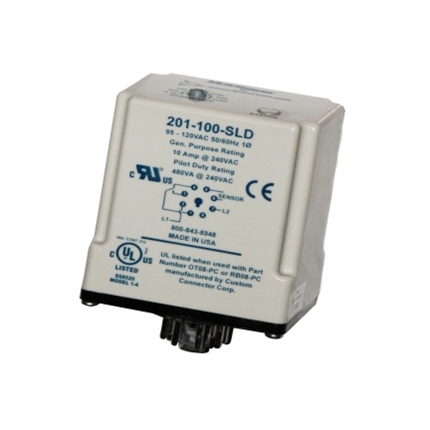

201-100-SLD - SymCom Seal Leak Detector 110-120V 8-Pin Plug-In
201-100-SLD - SymCom
201-100-SLD
This is a family photo and may not be an accurate representation of the product.

Price: $89.06
Returnable: NOT RETURNABLE
Manufacturer SKU: 201-100-SLD



Availability: Usually Ships in 3 to 5 Days
Part Number: 201-100-SLD
Qty:

Description

201-100-SLD - SymCom Seal Leak Detector 110-120V 8-Pin Plug-In

The Model 201-100-SLD Family
is an 8-pin plug-in style seal-leak detector to sense seal failures on submersible pumps. A microcontroller-based relay that monitors the shaft seal of a submersible pump motor. A resistive probe is installed in the seal cavity. If water leaks into the pump, the resistance measured by the probe decreases. When the resistance drops below the sensitivity setpoint, the unit will trip and the relay contacts will change state. The unit will automatically reset when a fault is cleared.

Features:

  • LED status indicator
  • Compact plug-in design
  • DIN rail or surface mountable via octal base

Auxiliary Products:

  • 8-pin octal socket P/N: CT0T08-PC
pdfDownload the The SymCom Product Line catalog in *.pdf format
pdfDownload the SymCom Overview brochure in *.pdf format
pdfDownload the Seal Leak Detectors datasheet in *.pdf format
