201-100-SP-DPDT - SymCom 1-Phase 8-Pin Plug-In Voltage Monitor 95-120V DPDT
201-100-SP-DPDT - SymCom
201-100-SP-DPDT

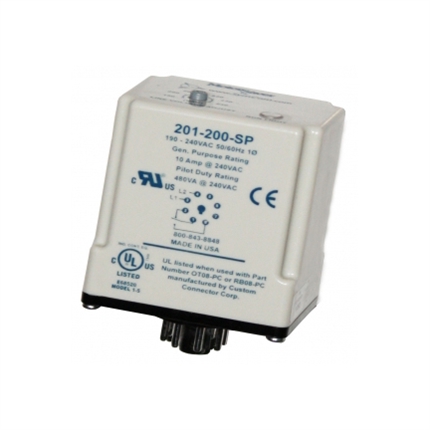

This is a family photo and may not be an accurate representation of the product.

Price: $133.85
Returnable: NOT RETURNABLE
Manufacturer SKU: 201-100-SP-DPDT



Availability: Usually Ships in 3 to 5 Days
Part Number: 201-100-SP-DPDT
Qty:

Description

201-100-SP-DPDT - SymCom 1-Phase 8-Pin Plug-In Voltage Monitor 95-120V DPDT

The Model 201-xxx-SP-DPDT Family
An 8-pin octal-base, plug-in voltage monitor designed to protect single-phase motors regardless of size. The 201-100-SP-DPDT is used on 95-120VAC, 50/60Hz motors to prevent damage caused by low voltage. The 201-200-SP-DPDT is used on 190-240VAC, 50/60Hz motors. The units feature two isolated sets of contacts that are ideal for use with two control circuits with different voltages.

The unique microcontroller-based voltage and voltage-sensing circuit constantly monitors the voltage to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver's output relays are deactivated after a specified trip delay. The output relays reactivate after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

Features:

  • Low voltage protection
  • Two isolated Form C relays (DPDT)
  • Diagnostic LED
  • 8-pin plug-in; DIN rail or surface mount

Auxiliary Products:

  • 8-pin octal socket P/N: CT0T08-PC
