202-200-SP - SymCom 1-Phase Voltage Monitor 190-240V Adjustable
202-200-SP - SymCom
202-200-SP

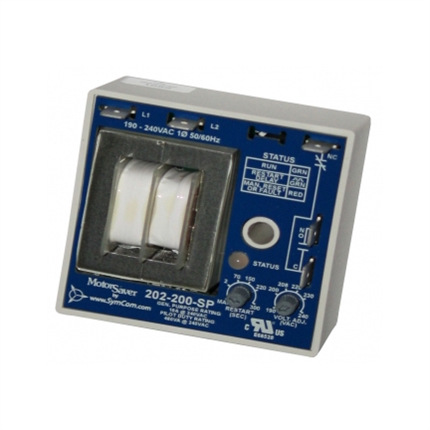

This is a family photo and may not be an accurate representation of the product.

Price: $82.06
Returnable: NOT RETURNABLE
Manufacturer SKU: 202-200-SP



Availability: Usually Ships in 3 to 5 Days
Part Number: 202-200-SP
Qty:

Description

202-200-SP - SymCom 1-Phase Voltage Monitor 190-240V Adjustable

The Model 202-200-SP Family
A voltage monitor is designed to protect single-phase motors regardless of size. It can be used with 190V-240VAC, 50/60Hz motors to prevent damage caused by incoming power problems.

A unique microcontroller-based voltage-sensing circuit constantly monitors the voltage to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver's output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

Features:

  • Protects from high and low voltage (low voltage only for 202-200-SP-NHV
  • Protects against rapid cycling
  • Quick mounting with single screw
  • Adjustable restart delay setting
  • Small package, ideal for assembly into panels
  • Standard 1/4" quick connects
pdfDownload the The SymCom Product Line catalog in *.pdf format
pdfDownload the SymCom Overview brochure in *.pdf format
pdfDownload the Single-Phase Voltage Monitors datasheet in *.pdf format
