2153.15P - Littelfuse 02153.15VXP, SLO-BLO 5X20MM FUSE, Voltage: 250VAC, Amp Size: 3-5/16
2153.15P - Littelfuse
2153.15P

Price: $4.05
Manufacturer SKU: 2153.15P
Manufacturer ID: 02153.15VXP
(Minimum order):  5



Availability: Usually Ships in 3 to 5 Days
Part Number: 2153.15P
Qty:

Description Technical Specs

2153.15P - Littelfuse 215 V PK 5X20 Fuse

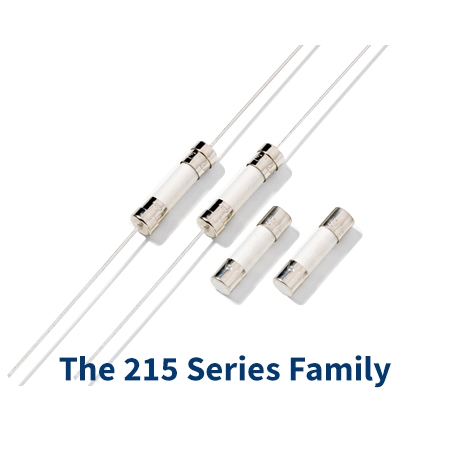

The 215 Series Family

The 215 series is 5x20, Ceramic body, Time-Lag type Cartridge fuse. With the extension into higher current ratings beyond existing 12A, from 15A up to 25A in cartridge version, in particular for 20A and 25A, it offers designers better flexibility in circuit protection design for high current applications.

The 215 Series has remarkable interrupting capability at operating voltage of 250VAC.

In addition, it can be used in AC applications, and it provides a smaller footprint of 5 x 20mm as compared to 6.3 x 32mm for same applications.

Features:
  • Offer high ampere ratings
  • Provide remarkable interrupting capacity
  • UL agency approval
Applications:
  • Primary and Secondary protection for White Goods, UPS/Power Supplies, High current applications
pdfDownload the The 215 Series catalog in *.pdf format
