233P - SymCom 1-Phase Pumpsaverplus 230V 1/3-3HP
233P - SymCom
233P

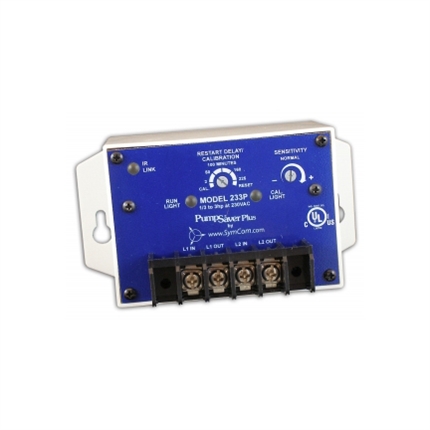

This is a family photo and may not be an accurate representation of the product.

Price: $235.55
Manufacturer SKU: 233P

Quantity in Stock:1


Availability: Usually Ships in 3 to 5 Days
Part Number: 233P
Qty:

Description

233P - SymCom 1-Phase Pumpsaverplus 230V 1/3-3HP

The Model 233P Family
The Model 233P single-phase PumpSaver®Plus is a pump monitor designed to protect single-phase pumps from dry-well, dead-head, jammed impeller, rapid cycle, overvoltage and undervoltage condi-tions. The PumpSaver®Plus Model 233P protects 230 volt, 2 or 3 wire, 1/3 to 3 hp pumps.

A calibration adjustment allows the Model 233P to be calibrated to your specific pumping applications, thereby reducing the pos-sibility of false or nuisance tripping. A proprietary microcontroller based voltage, power factor and current-sensing circuit constantly monitors for power fluctuations, overcurrent and underload condi-tions. When an abnormality, such as loss of suction, is detected, the PumpSaver®Plus deactivates its output relay and directly disconnects the pump motor. The PumpSaver®Plus then begins its user-selectable "Restart Delay" (dry-well recovery) timer. When the timer expires or power is removed and reapplied, the PumpSaver®Plus reactivates its output relay and allows the pump to turn back on.

An infrared LED communicates directly with a hand-held diagnostic tool called the Informer (sold separately).

Features:

  • Protects single-phase pumps from:
    • Dry well
    • Flow restrictions (dead head)
    • Overcurrent (jammed impeller)
    • Overvoltage
    • Undervoltage
    • Rapid cycling
  • Ideal for submersible pumps
  • State-of-the-art pump protection
  • Infrared LED communication to SymCom's Informer
  • UL Listed
  • 5-year warranty
  • Made in USA
