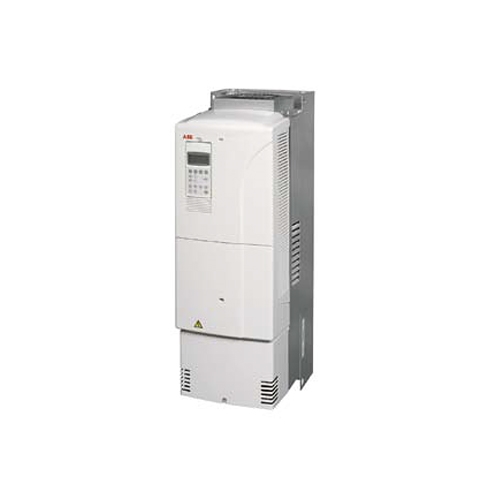

ACS800-U11-0025-5 - ABB AC Drive NEMA 1, 3-Phase 380-500V, 25HP
The ACS800 Single Drives Family
Our industrial drives are available both as complete AC drives and as modules to meet your requirements as a user, OEM or system integrator. Single drive modules configuration contains a rectifier, DC link and an inverter in one single AC drive unit. They can be installed without any additional cabinet or enclosure, available in wall-mounted, freestanding and cabinet-built constructions. They are specifically designed for industrial applications in process industries such as the pulp & paper, metals, mining, cement, power, chemical, and oil & gas.
Specifications- IP21 and IP55 enclosure classes
- Direct torque control (DTC) as standard
- EMC filter, choke and brake chopper
- Supports a wide range of fieldbus protocols
- Flexible I/O and encoder options
 Click to view the ACS800 AC Drives Catalog in *.pdf format
ABB ACS800 Family General Technical Specifications
| Mains Connection |
Voltage and Power Range |
3-phase, U2IN = 208 to 240 V, ± 10%, except -07, -07LC, -17, -17LC, -37, -37LC 3-phase, U3IN = 380 to 415 V, ± 10% 3-phase, U5IN = 380 to 500 V, ± 10% 3-phase, U7IN = 525 to 690 V, ± 10% (600 V UL, CSA) |
| Frequency |
48 to 63 Hz |
| Power factor |
cosΦ1= 0.98 (fundamental)
cosΦ = 0.93 to 0.95 (total) |
| Power factor (ACS800-11/-31/-17 /-17LC/-37/-37LC) |
cosΦ1= 1 (fundamental)
cosΦ = 0.99 (total) |
Efficiency (at nominal power) ACS800-0x
ACS800-1x/-3x |
98%
97% |
| Motors Connection |
Voltage for > 500 V units |
3-phase output voltage 0 to U2IN/U3IN/U5IN/U7IN |
| Frequency |
0 to ±300 Hz (0 to ±120 Hz with optional du/dt filters) |
| Field weakening point |
8 to 300 Hz |
| Motor control |
ABB's direct torque control (DTC) |
Torque control:
Open loop
Closed loop |
Torque step rise time:
<5 ms with nominal torque
<5 ms with nominal torque |
Open loop
Closed loop |
Non-linearity:
±4% with nominal torque
±3% with nominal torque |
Speed control:
Open loop
Closed loop
Open loop
Closed loop |
Static accuracy:
10% of motor slip
0.01% of nominal speed
Dynamic accuracy:
0.3 to 0.4%sec. with 100% torque step
0.1 to 0.2%sec. with 100% torque step |
| Product Compliance |
CE Low Voltage Directive 2006/95/EC Machinery Directive 2006/42/EC EMC Directive 2006/108/EC Quality assurance system ISO 9001 and Environmental system ISO 14001 UL, cUL 508A or 508C and CSA C22.2 NO.14-95, C-Tick, GOST R |
| EMC according to EN 61800-3/A11 (2000), EN 61800-3 (2004) |
2nd environment, unrestricted distribution, category C3 - standard in -07 (frame size nxR8i), -07LC, -17, -17LC, -37 and -37LC (frame sizes R7i-nxR8i), option in the others. 1st environment, restricted distribution (category C2) as options up to 1000 A input current. |
| Environmental Limits |
Ambient temperature Transport Storage |
-40 to +70 °C
-40 to +70 °C |
| Operation Air cooled Liquid-cooled |
-15 to +50 °C, no frost allowed
+40 to +50 °C at reduced output current (1%/1 °C)
0 to +55 °C, no frost allowed
+45 to +55 °C at reduced output current (0.5%/1 °C) |
| Cooling method Air cooled Liquid-cooled |
Dry clean air
Direct liquid-cooling |
| Altitude 0 to 1000 m 1000 to 4000 m |
Without derating
With derating ~ (1%/100 m)
(690 V units 1000 to 2000 m with derating) |
| Relative humidity |
5 to 95%, no condensation allowed |
Degree of protection
IP21
IP22
IP42
IP54
IP54R
IP55
R = outlet air duct connection |
Standard for -01, -11, -31, -02, -07, -17, -37
Option for -07, -17, -37
Standard for -07LC, -17LC, -37LC,
Option for -07, -17, -37
Option for -07, -07LC, -17, -17LC, -37, -37LC
Option for -07, -17, -37
Option for -01 |
| Paint colour |
-07, -07LC, -17, -17LC, -37, -37LC: RAL 7035 -01, -11, -31, -02: NCS 1502-Y (RAL 9002, PMS 420 C) |
| Contamination levels |
No conductive dust allowed |
| Storage |
IEC60721-3-1, Class 1C2 (chemical gases), Class 1S2 (solid particles) |
| Transportation |
IEC60721-3-2, Class 2C2 (chemical gases), Class 2S2 (solid particles) |
| Operation |
IEC60721-3-3, Class 3C1/3C2* (chemical gases), Class 3S2 (solid particles) |
| Vibration marine classification |
3 to 13.2 Hz: ±1 mm amplitude (peak) 13.2 to 100 Hz: 0.7 g acceleration |
| |
C = Chemically active substances S = Mechanically active substances * coated circuit boards |
|
|
|
 |
|
 |
|
