3004-277-5M - Applied Motion Products SWM24 Power Cable 5 meter, 4-pin M12 connector to flying leads

3004-277-5M - Applied Motion Products
3004-277-5M

Price: $89.30
Manufacturer SKU: 3004-277-5M



Availability: Usually Ships in 3 to 5 Days
Part Number: 3004-277-5M
Qty:

Description

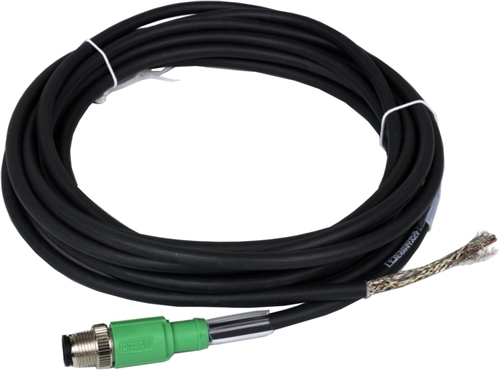

One 3004-277 power  cable is required for connecting a DC power supply
to all SWM24 IP65 rated integrated drive+motor models.  The 3004-277
features a sealed, four position A coded M12 connector at the SWM24 end
and flying leads at the power supply end.  The cable shield is used to
connect the SWM24’s metal case to earth ground to reduce electrical
noise and interference.



  • IP65 rate

  • 4 pin A coded M12 connector to flying leads

  • 5 meters (16.4ft) long

  • Used to supply DC power SWM24

  • Used for all SWM24 models

  • Shielded
