460-100-SP - SymCom 1-Phase Voltage Monitor 95-120V Adjustable DIN Rail
460-100-SP - SymCom
460-100-SP

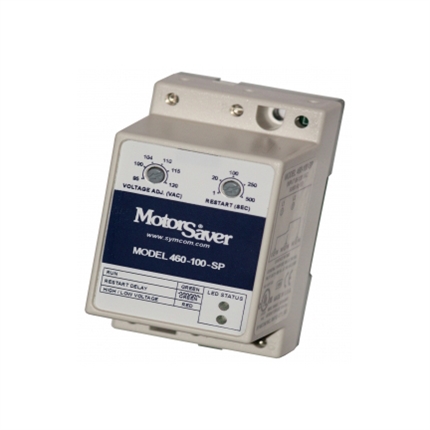

This is a family photo and may not be an accurate representation of the product.

Price: $101.52
Returnable: NOT RETURNABLE
Manufacturer SKU: 460-100-SP



Availability: Usually Ships in 3 to 5 Days
Part Number: 460-100-SP
Qty:

Description

460-100-SP - SymCom 1-Phase Voltage Monitor 95-120V Adjustable DIN Rail

The Model 460-100/200-SP Family
The Model 460 is used on 95-120VAC, 50*/60Hz single-phase motors and the 460-200-SP is used on 190-240VAC, 50*/60Hz single-phase motors to protect them from damaging high and low voltage conditions. An adjustment knob allows the user to set a 1-500 second restart delay. The variable restart delay is also a power-up delay and can be utilized to stagger-start motors on the same system.

A unique microcontroller-based, voltage-sensing circuit constantly monitors the voltage to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver's output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

Features:

  • Protects from low and high voltage, and rapid cycle
  • DIN rail or surface mountable
  • LED Diagnostics
  • Adjustable restart delay setting
