1SAR700110R0010 - ABB 1SAR700110R0010, TEMP MONITORING RELAY

1SAR700110R0010 - ABB
1SAR700110R0010

Price: $878.89
Returnable: NOT RETURNABLE
Manufacturer SKU: 1SAR700110R0010
Manufacturer ID: 662019112800



Availability: Usually Ships in 3 to 5 Days
Part Number: 1SAR700110R0010
Qty:

Description

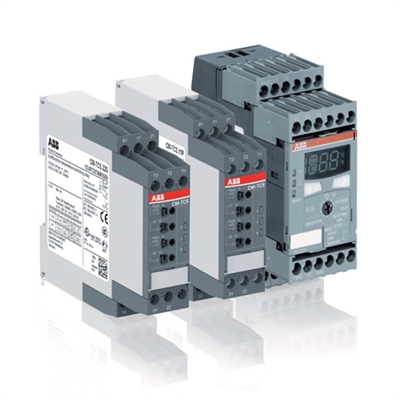

1SAR700110R0010 - ABB 1SAR700110R0010, TEMP MONITORING RELAY

Overview
The temperature monitoring relays can be used for temperature measurement in solid, liquid and gaseous media. The temperature is acquired by the sensor in the medium, evaluated by the device and monitored to determine whether it is within an operating range (range monitoring function) or has exceeded or fallen below a threshold.

Functional description

The temperature monitoring relays CM-TCS monitor overtemperature, undertemperature, or temperatures between two threshold values (window monitoring) with PT100 sensor. As soon as the temperature falls below or exceeds the threshold value the output relays change their positions according to the configured functionality and the front-face LEDs display the current status. Regardless of the selected configuration, the device is monitoring its measuring circuit for interrupted wires or short-circuits.

Characteristics CM-TCS
  • Adjustable sensor type: PT100
  • Functionality like overtemperature monitoring, undertemperature monitoring, temperature window monitoring configurable
  • All configurations and adjustments by front-face operating elements
  • Precise adjustment with direct reading scales
  • One or two threshold values
  • Hysteresis 2...20 % adjustable
  • Operating temperature range -40...+60°C
  • 1 x 2 c/o or 2 x 1 c/o configurable
  • Open- or closed-circuit principle configurable
  • Short-circuit monitoring and interrupted wire detection
  • 22.5 mm (0.89 in) width
  • LEDs for status indication
Characteristics C512 + C513
  • Adjustable sensor types: PT100, PT1000, KTY83, KTY84, NTC-B57227-K333-A1
  • Measuring principle for 2-wire and 3-wire sensors
  • Temperature monitor for 1-3 sensor circuits
  • Adjustable over-, undertemperature monitoring or range monitoring function
  • 2 thresholds
  • Hysteresis for both thresholds (1-99 Kelvin)
  • Adjustable time delay from 0-999 s affects to both thresholds
  • Storage function selectable via external signal (Y1-Y2)
  • Non volatile storage of parameter settings
  • 1 n/o (for wire-break and short-circuit detection) and 2 c/o
  • Multifunctional digital display
  • 3 LEDs for status indication
  • Open- or closed-circuit principle selectable
  • 45 mm wide housing with 24 terminals
C512
  • Temperature monitor for 1 sensor circuit
C513
  • Temperature monitor for 1-3 sensor circuits
  • In the 3-sensor version the status of the single sensors is displayed if the temperature exceeds or falls below the threshold. This way it can be easily determined which one of the connected sensors has exceeded or dropped below either one or both threshold values.
pdfDownload the Electronic Products and Relays catalog in *.pdf format
