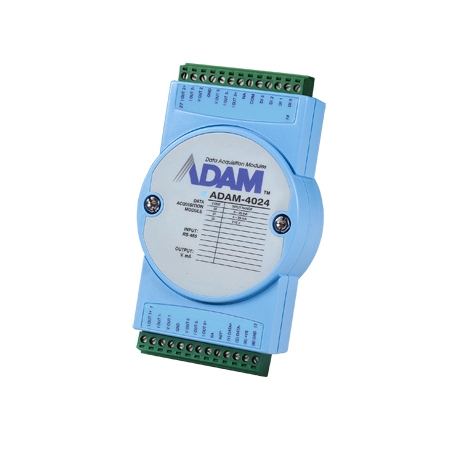

ADAM-4024-B1E - Advantech CIRCUIT MODULE, 4-Ch AO Module w/ Modbus

ADAM-4024-B1E - Advantech
ADAM-4024-B1E

Manufacturer SKU: ADAM-4024-B1E


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-4024-B1E
Call, Email, or Live Chat for Pricing or to Order

Description Technical Specs

ADAM-4024-B1E - Advantech CIRCUIT MODULE, 4-Ch AO Module w/ Modbus
ADAM-4024 provides 4 universal type output channels. Moreover, it is designed with 4 Digital inputs for integrating applications, such as emergency latch outputs or users default triggers. It uses optical isolators to prevent ground loop effects and limits damages from power surges. You can specify slew rates and startup currents.

4-ch Analog Output Module with Modbus
  • 12-bit resolution
  • Software configurable for mA or V output in individual channels
  • 4 digital inputs for latch output
  • 3000 VDC D/A to Logic isolation
  • Programmable output slope: 0.125 - 128.0 mA/sec. 0.0625 - 64 V/sec.
pdfDownload the ADAM-4024-B1E brochure in *.pdf format
