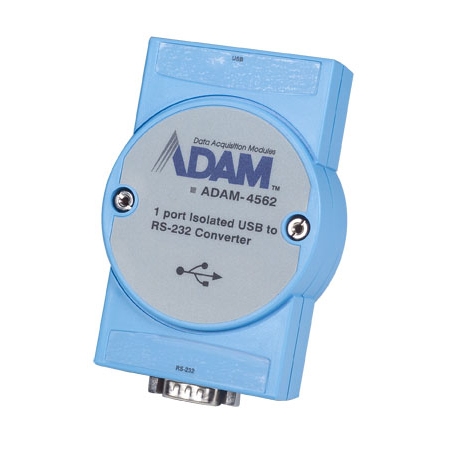

ADAM-4562-AE - Advantech CIRCUIT MODULE, 1 port isolated USB to RS232 converter module

ADAM-4562-AE - Advantech
ADAM-4562-AE

Price: $127.10
Manufacturer SKU: ADAM-4562-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-4562-AE
Qty:

Description Technical Specs

ADAM-4562-AE - Advantech CIRCUIT MODULE, 1 port isolated USB to RS232 converter module

The ADAM-4561/4562 Family
ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. Thismakes the ADAM-4561/4562 especially suitable for modems, printers, POS systems and industrial control devices.

Compliant with USB V1.1, ADAM-4561/4562 features several powerful functions such as high-speed 115.2 kbps transmission, support for various operating systems, independentRS-232/422/485 ports and more. By simply plugging in a USB hub, ADAM-4561/4562 eliminates the configuration issues associated with high-priced, older card solutions. Youonly have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort.

1-port Isolated USB to RS-232 Converter
  • Full compliance with USB V1.1 specifications
  • Transmission speed up to 115.2 kbps
  • Isolation protection 3000 VDC provided
  • Automatic RS-485 data flow control
  • No external power supply necessary; the hub derives its power from the USB port
  • Plug & Play installation
  • No additional IRQs or I/O ports required
  • Hot swap function supported
pdfDownload the ADAM-4562-AE brochure in *.pdf format
