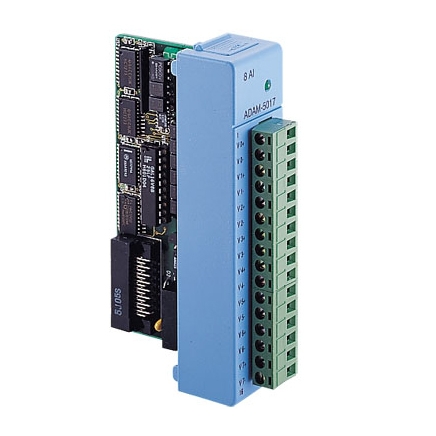

ADAM-5017-A4E - Advantech CIRCUIT MODULE, 8-Ch AI Module

ADAM-5017-A4E - Advantech
ADAM-5017-A4E

Price: $202.00
Manufacturer SKU: ADAM-5017-A4E



Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-5017-A4E
Qty:

Description Technical Specs

ADAM-5017-A4E - Advantech CIRCUIT MODULE, 8-Ch AI Module
The ADAM-5017 is a 16-bit, 8-channel analog differential input module that provides programmable input ranges on all channels. It accepts millivolt inputs (±150mV, ±500mV), voltage inputs (±1V, ±5V and ±10V) and current input (±20 mA, requires 125 ohms resistor). The module provides data to the host computer in engineering units (mV, V or mA). This module is an extremely cost-effective solution for industrial measurement and monitoring applications.

8-ch Analog Input Module
  • Channels: 8 differential
  • Effective resolution: 16-bit
  • lnput type: mV, V, mA
  • Isolation voltage: 3000 VDC
  • Sampling rate: 10 samples/sec. (total)
  • Accuracy: ±0.1% or better
  • Fault and overvoltage protection: withstands overvoltage up to ±35 V
  • Input range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA
pdfDownload the ADAM-5017-A4E brochure in *.pdf format
