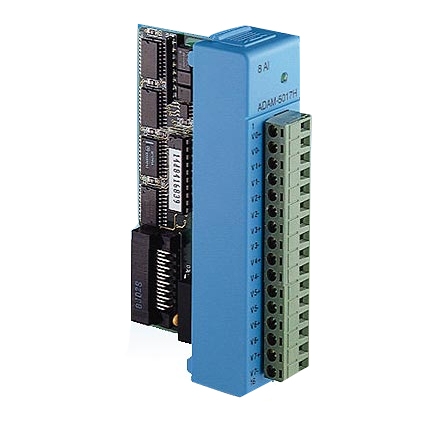

ADAM-5017H-BE - Advantech CIRCUIT MODULE, 8-channel High-speed Analog Input Module

ADAM-5017H-BE - Advantech
ADAM-5017H-BE

Price: $281.00
Manufacturer SKU: ADAM-5017H-BE



Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-5017H-BE
Qty:

Description Technical Specs

ADAM-5017H-BE - Advantech CIRCUIT MODULE, 8-channel High-speed Analog Input Module
The ADAM-5017H is a 12-bit plus sign bit, 8-channel analog differential input module that provides programmable input ranges on each channel. It accepts millivolt inputs (± 500 mV, 0-500 mV), voltage.

8-channel High-speed Analog Input Module
  • Effective resolution: 12-bit plus sign bit
  • Input type: mV, V, mA
  • 3000VDC Isolation voltage protection
  • High sampling rate:ADAM-5000/485&5000E: 100 samples/sec, ADAM-5510 & ADAM-5511: 8000 samples/sec max
  • 1000 Hz bandwidth
  • Distinct range settings allowed on each channel
  • Accuracy: ±0.1% or better
pdfDownload the ADAM-5017H-BE brochure in *.pdf format
