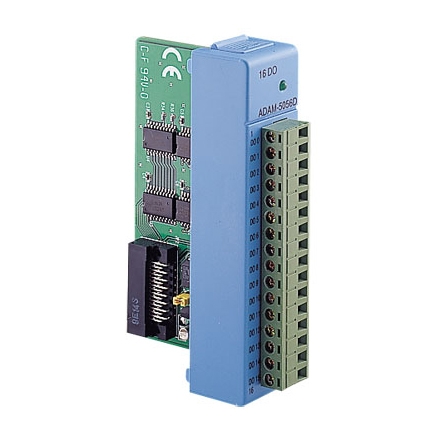

ADAM-5056D-AE - Advantech CIRCUIT MODULE, 16-Ch DO Module w/ LED

ADAM-5056D-AE - Advantech
ADAM-5056D-AE

Price: $103.00
Manufacturer SKU: ADAM-5056D-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-5056D-AE
Qty:

Description Technical Specs

ADAM-5056D-AE - Advantech CIRCUIT MODULE, 16-Ch DO Module w/ LED
The ADAM-5056D features sixteen digital output channels with LED indicators. The digital outputs are open-collector transistor switches that you can control from the ADAM-5000 main unit. You also can use the switches to control solid-state relays.

16-ch Digital Output Modules
  • Channels: 16
  • Operating voltage: 30 Vmax
  • Digital output: Open collector to 30 V, 100 mA max. load
  • Power consumption: 0.5 W (typical); 0.84 W (max.)
  • LED indicator: On: Output logic level "1"
  • Output status hold function
  • Power dissipation:300 mW for each channel
pdfDownload the ADAM-5056D-AE brochure in *.pdf format
