ADAM-5060-AE - Advantech CIRCUIT MODULE, 6-Ch Relay Output Module

ADAM-5060-AE - Advantech
ADAM-5060-AE

Price: $105.00
Manufacturer SKU: ADAM-5060-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-5060-AE
Qty:

Description Technical Specs

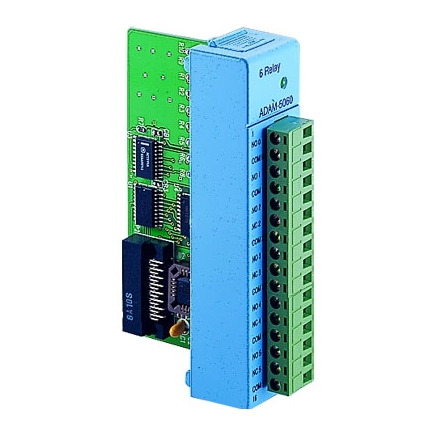

ADAM-5060-AE - Advantech CIRCUIT MODULE, 6-Ch Relay Output Module
The ADAM-5060 relay output module is a low-cost alternative to SSR modules. It provides 6 relay channels, two of Form A and four of Form C.

6-ch Relay Output Module
  • Contact rating: AC: 125 V @ 0.6 A; 250 V @ 0.3 A
  • Breakdown voltage: 500 VAC (50/60 Hz)
  • Relay on time (typical): 3 msec.
  • Relay off time (typical): 1 msec.
  • Total switching time: 10 msec.
  • Insulation resistance: 1000 MW minimum at 500 VDC
  • Channels:2 x form A , 4 x form C
pdfDownload the ADAM-5060-AE brochure in *.pdf format
