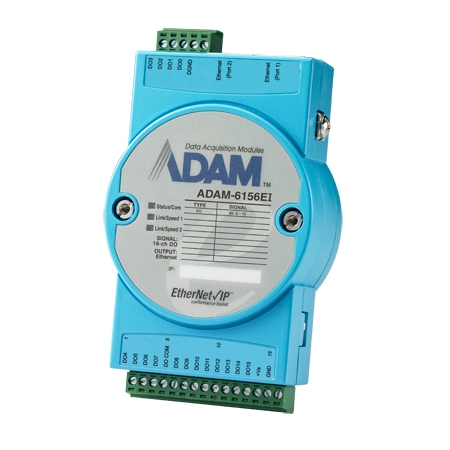

ADAM-6156EI-AE - Advantech ADAM-6156EI-AE 16-ch Isolated DO EtherNet/IP Module

ADAM-6156EI-AE - Advantech
ADAM-6156EI-AE

Price: $408.50
Manufacturer SKU: ADAM-6156EI-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-6156EI-AE
Qty:

Description

ADAM-6156EI-AE - Advantech 16-ch Isolated DO EtherNet/IP Module
Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6156EI, 16-ch isolated digital output EtherNet/IP module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.

16-ch Isolated Digital Output EtherNet/IP Module
  • EtherNet/IP protocol
  • 16-ch digital output
  • Normal output current: 0.1 A (per channel)
  • 2 x RJ-45 LAN (daisy chain)
pdfDownload the ADAM-6156EI-AE brochure in *.pdf format
