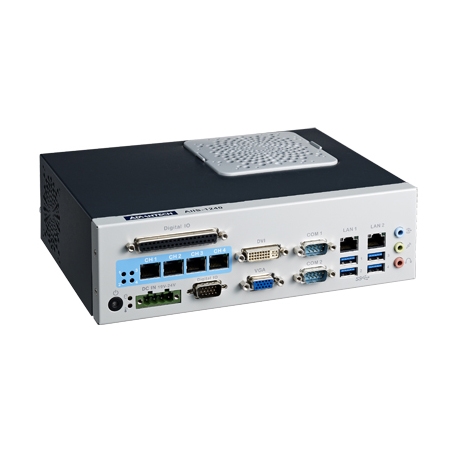

AIIS-1240-00A1E - Advantech AIIS-1240-00A1E PoE Control Vision System, H61, 4 PoE, 2 LAN, 4 USB3.0, 6 COM, 8-bit DIO

AIIS-1240-00A1E - Advantech
AIIS-1240-00A1E

Alternative Views:
Price: $1,185.00
Manufacturer SKU: AIIS-1240-00A1E



Availability: Usually Ships in 3 to 5 Days
Part Number: AIIS-1240-00A1E
Qty:

Description Technical Specs

AIIS-1240-00A1E - Advantech PoE Control Vision System, H61, 4 PoE, 2 LAN, 4 USB3.0, 6 COM, 8-bit DIO
PoE Control System, Support Intel® Core™ i7/i5/i3 CPU, 4-CH GbE PoE
  • Intel® 3rd/2nd Core™ i7/i5/i3 CPU (LGA1155)
  • 4-CH GbE PoE (Power over Ethernet), IEEE 802.3af compliant
  • Powered device auto detection and classification
  • Supports IEEE 1588 & GigE Vision device
  • Compact & thoughtful design
  • Volume less than 3 Liter
  • Easier fan filter maintenance
  • Internal USB Type-A with lock design (Max. 49mm length)
  • Wall or DIN rail mounting kit (optional)
  • Build in G-sensor for vibration detection
Packing List
  • AIIS-1240 Bare System - AIIS-1240-00A1E (Qty 1)
  • Startup Manual - 2006S12400 (Qty 1)
  • Driver CD - 206K124000 (Qty 1)
  • Wallmount Bracket - 1960014487T004 (Qty 2)
  • Rubber Foot - 1990012452S000 (Qty 4)
  • CPU Cooler - 1960060620N001 (Qty 1)
  • 4-pin Phoenix DC power connector - 1652003234 (Qty 1)
pdfDownload the AIIS-1240-00A1E brochure in *.pdf format
