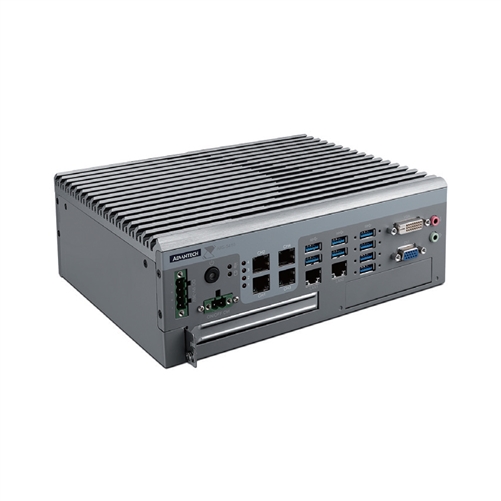

AIIS-5410P-S9A1E - Advantech COMPUTER System, AIIS-5410 Fanless System i5-6442EQ1.9 GHz, DDR4G

AIIS-5410P-S9A1E
AIIS-5410P-S9A1E

Alternative Views:
Price: $2,084.00
Manufacturer SKU: AIIS-5410P-S9A1E



Availability: Usually Ships in 3 to 5 Business Days
Part Number: AIIS-5410P-S9A1E
Qty:

Description Technical Specs

AIIS-5410P-S9A1E - Advantech COMPUTER System, AIIS-5410 Fanless System i5-6442EQ1.9 GHz, DDR4G

Features

  • 6th Generation Intel® Core™ i7/5 BGA1440 processor
  • Four-channel Gigabit Power over Ethernet (GbE PoE)
  • Powered device auto detection and classification
  • Compliant with IEEE 1588 and IEEE 802.3af standards
  • Compatible with Gigabit Ethernet (GigE) cameras
  • Wide input power range (9 ~ 36 V DC)
  • Wide operating temperature range (-20 ~ 60°C)
  • Isolated digital I/O
  • Internal USB dongle space with lock design
  • Desk/wall mounting kit
Packing List

Description Part Number Quantity
AIIS-5410 barebone unit 1
AIIS-5410 startup manual 2001541000 1
Driver CD 2061750000 1
Wall mount bracket 1960070543N002 2
4-pin Phoenix DC power connector 1652003234 1
2-pin Phoenix DC power connector 1652005203 1
SATA cable 1700018971 2
SATA power cable 1700024372-01 2
PCI riser card 9691541010E 1

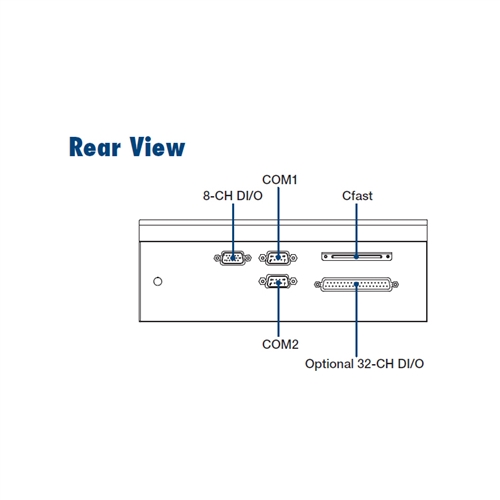

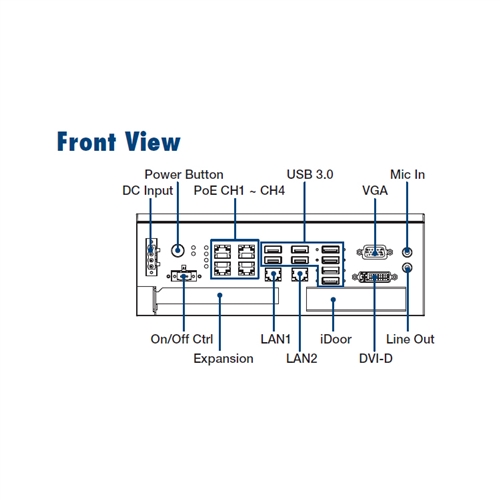

CPU PoE Port Display USB 3.0 DI/DO COM 232/422/485 Expansion Slot
i5-6442EQ 4-channel VGA+DVI 8 8-channel 2 1 PCIex8; 1 PCI*
Note: System default expansion slot is PCIex8. PCI needs to change the riser card and it is in accessory box.

pdfDownload the AIIS-5410P-S9A1 brochure in *.pdf format
