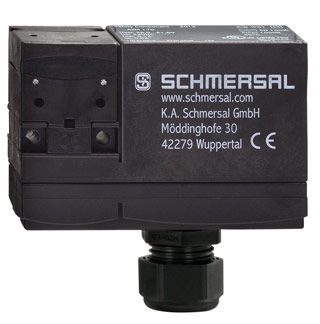

AZM170-02ZRKA-24-VAC-DC - Schmersal AZM170 Solenoid latching interlock ( 101141020 )

AZM170-02ZRKA 24 VAC/DC - Schmersal
AZM170-02ZRKA 24 VAC/DC

Price: $516.00
Manufacturer SKU: AZM170-02ZRKA 24 VAC/DC
Manufacturer ID: 101141020



Availability: Usually Ships in 3 to 5 Days
Part Number: AZM170-02ZRKA-24-VAC-DC
Qty:

Description

IDC method of termination; 2 Opener (NC) contacts; Latching force 30 N; Power to Lock; cable gland; Us 24 VAC/DC; Manual release

The AZM170 consists of an electromechanical safety interlock switch joined to a solenoid-latching mechanism. Both the safety switch and solenoid mechanism feature "positive-break" contacts. In addition the actuator key features a built-in latch (unlocked key holding force of 7 pounds), and an auxiliary manual unlocking device.

Thermoplastic enclosure
Double-insulated
Compact design
90 mm x 84 mm x 30 mm
1 Cable entry M 20 x 1.5
Interlock with protection against incorrect locking.
Long life
High holding force
IDC method of termination
Manual release
