AIIS-3410U-00A1E - Advantech Compact Vision System, H110,DDR4, 4+4 USB3.0, 2 LAN, 2 COM,PCI
Features
- Intel® 6th generation Core i CPU (LGA1151)
- AIIS-3410P: 4-CH GbE PoE (Power over Ethernet)
- Powered device auto detection and classification
- IEEE 802.3af compliant, supports IEEE 1588
- Compatible with GigE cameras
- Compact & thoughtful design
- PCIe or PCI extension compatibility
- Isolated Digital I/O
- Internal USB 2.0 connector
Packing List
|
Items
|
Part Number
|
Quantity
|
|
Bare System
|
AIIS-3410
|
1
|
|
Startup Manual (EN/CN)
|
2001341000
|
1
|
|
Startup Manual (TC)
|
2001341010
|
1
|
|
Driver CD
|
2061340000
|
1
|
|
Wallmount Bracket
|
1960014487T006
|
2
|
|
Rubber Foot
|
1990022908S000
|
4
|
|
CPU Cooler
|
1960060620N001
|
1
|
|
4-pin Phoenix DC power connector
|
1652003234
|
1
|
|
2-pin Phoenix DC power connector
|
1652002205
|
1
|
 Download the AIIS-3410U-00A1E brochure in *.pdf format
| Processor System |
CPU |
i7-6700 |
i7-6700TE |
i5-6500 |
i5-6500TE |
i3-6100 |
i3-6100TE |
G4400 |
G4400TE |
G3900 |
G3900TE |
| |
Core |
4 |
4 |
4 |
4 |
2 |
2 |
2 |
2 |
2 |
2 |
| |
Base Frequency |
3.4 GHz |
2.4 GHz |
3.2 GHz |
2.3 GHz |
3.7 GHz |
2.7 GHz |
3.3 GHz |
2.9 GHz |
2.8 GHz |
2.6 GHz |
| |
L3 Cache |
8 MB |
8 MB |
6 MB |
6 MB |
4 MB |
4 MB |
3 MB |
3 MB |
2 MB |
2 MB |
| |
Chipset |
H110 |
|
|
|
|
|
|
|
|
|
| |
BIOS |
AMI 128Mb SPI Flash |
|
|
|
|
|
|
|
|
|
| Memory |
Technology |
Dual Channel DDR4 1866/2133 MHz (non-ECC) |
| |
Max Capacity |
32 GB (16 GB per DIMM) |
| |
Socket |
260-pin SO-DIMM x 2 |
| Graphics |
Chipset Integrated |
Integrated Intel HD Graphics |
| Ethernet |
Interface |
10/100/1000 Mbps |
| |
Controller |
LAN1: Intel i219LM, LAN2: Intel i210AT (Both support Wake on LAN) |
| Camera Interface PoE (AIIS-3410P) |
Controller |
CH1 ~ CH4: Intel i210 |
| |
Compliant |
IEEE 802.3af |
| |
Power Output |
15W per channel / 30W for 1 & 2 channel (Note: selected by BIOS) |
| Camera Interface USB 3.0 (AIIS-3410U) |
Controller |
CH1 ~ CH4: μPD720202 |
| |
Compliant |
USB 3.0 |
| |
Power Output |
4.5W per Channel |
| Storage |
Internal 2.5" HDD Bay |
1 (max. 9.5 mm height) |
| |
CFast |
1 |
| Expansions |
PCle/PCI |
1 (depend on Riser card) (PCIe x16 slot with x8 signal) |
| |
miniPCle |
1 (USB2.0/SATA) |
| |
iDoor |
1 |

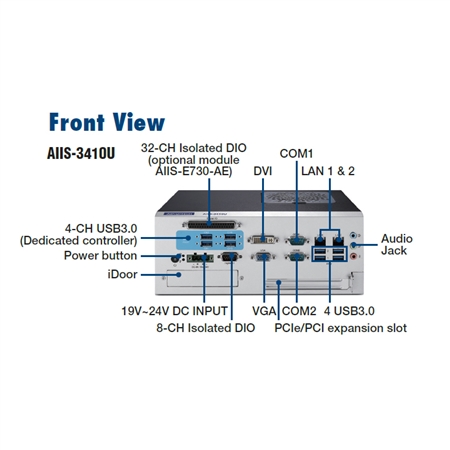

| Front I/O |
Display |
VGA + DVI-D |
| |
USB |
4 USB3.0 |
| |
Serial |
2 (RS-232/422/485, via BIOS setting ; RS-485 support auto-flow control) |
| |
Isolated DIO (Default) |
4 DI and 4 DO Channels |
| |
Isolated DIO (Optional) |
AIIS-E730-AE (16-CH DI, 16-CH DO)
High output driving capacity (500 mA max./channel) Interrupt capable for all 16 DI channel
Supports 3~30 VDC isolated input channel
Dry/Wet contact support
High-voltage isolation on output channels (2,500 VDC) |
| Internal Connector |
USB |
1 USB 2.0 connector |
| Watchdog Timer |
Output |
System reset |
| |
Interval |
Programmable 1 ~ 255 sec/min |
| Power Requirement |
Power Type |
ATX/AT |
| |
Power Input Voltage |
19 VDC ~ 24 VDC (± 10%) |
| |
Minimum Power Input |
DC 19-24V @ 8-6.3A |
| |
Power Adapter |
AC to DC, DC24V/9.16A, 220W (Optional) |
| Cooling |
System Fan |
1 (8 cm/57 CFM) |
| Miscellaneous |
LED Indicators |
Power, HDD, temperature |
| |
Control |
Power on/off switch |
| Environment |
Temperature |
Operating: 0 ~ 45 °C (32 ~ 113 °F)
Non-Operating: -40 ~ 70 °C (-40 ~ 158 °F) |
| |
Humidity |
Operating: 10 ~ 95% @ 40 °C, non-condensing
Non-Operating: 10 ~ 95% @ 60 °C, non-condensing |
| |
Vibration |
Operating: 0.5Grms, random, 5~500Hz, 3 axes, 1 hr/axis
Non-Operating: 2G, sine wave, 5~500Hz, 3 axes, 1 hr/axis |
| |
Shock |
Operating: 10G, half sine wave, 11 ms duration |

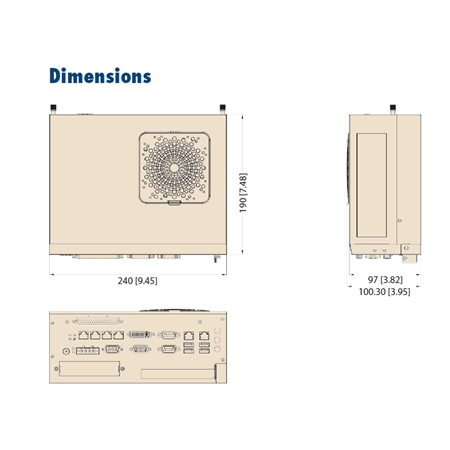

| Physical Characteristics |
Dimension (WxHxD) |
240 x 97 x 190 mm (9.45" x 3.82" x 7.48") |
| |
Weight |
2.4 kg (5.29 lb) (w/o CPU cooler) |
|
|
|
 |
|
 |
|
|
|
