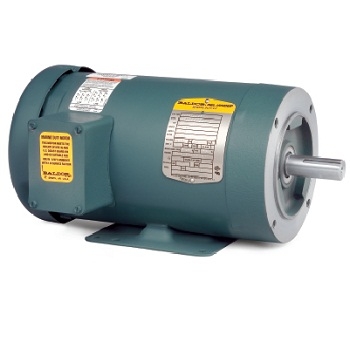

CSPM3558T - Baldor 2HP, 1800RPM, 3PH, 50/60HZ, 145TC, 230/460V
Baldor - CSPM3558T
CSPM3558T

Price: $3,985.20
Returnable: NOT RETURNABLE
Manufacturer SKU: CSPM3558T



Availability: Usually Ships within 24 hours
Part Number: CSPM3558T
Qty:

Description Documents & Downloads

Applications: Synchronous permanent magnet motors are designed for those applications requiring inherent, precise, open-loop speed regulation of individual or multiple interconnected operations.

Features: Motor design incorporates permanent magnets imbedded in the rotor to form salient poles that synchronize the load to the frequency applied with zero slip. Steel band frames, top mounted steel conduit box, 1.0 service factor, Class F insulation, 40C ambient, continuous duty. Precision balanced with Max Safe Speed = 6,000 RPM. Inverter Ready design suitable for 10:1 Constant Torque speed range.
CSPM3558T
Additional Product Information
pdfDownload the CSPM3558T Data Sheet in *.pdf format
