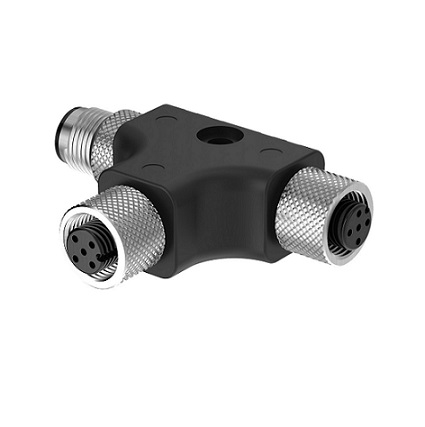

CSB-M1250M1250-T - Banner Engineering Euro-style Quick Disconnect T Splitter Connector. 5-Pin Female Trunk Straight. 5-Pin Female T Branch (1). 5-Pin Male T Branch(1). Black TPU Splitter Junction (807697)

CSB-M1250M1250-T - Banner
CSB-M1250M1250-T

Price: $34.00
Manufacturer SKU: CSB-M1250M1250-T
Manufacturer ID: 807397



Availability: Usually Ships in 3 to 5 Days
Part Number: CSB-M1250M1250-T
Qty:

Description

CSB-M1250M1250-T - Banner Engineering Euro-style Quick Disconnect T Splitter Connector. 5-Pin Female Trunk Straight. 5-Pin Female T Branch (1). 5-Pin Male T Branch(1). Black TPU Splitter Junction (807397)

Specifications

Number of Contacts 15
Number of Connectors 3
Connector Body Material/Color PUR Black
Outside Cable Diameter (mm) N/A
Trunk Length (m) No Trunk
Shield/No Shield No Shield
Coupling Material/Color Nickel Plated Brass
Maximum Temp. (°C) 105
Current Rating (A) 4.0
Minimum Temp. (°C) -40
Voltage Rating (V) 250 V ac/300 V dc
IP Rating IP67
Primary Connector Type EURO
Primary Coupling Method M12 Single Key
Primary Gender Male
Primary Orientation Straight
Primary Number of Conductors 5
Primary AWG 22
Splitter Branches: Connector Type M12F, M12F
Splitter Branches: Coupling Method M12 Single Key, M12 Single Key
Splitter Branches: Orientation Straight, Straight
Splitter Branches: Number of Conductors 5, 5
Splitter Branches: AWG 22, 22
Splitter Branches Length (m) 0, 0
Splitter Function Parallel
Feature: Hazardous Area No
Oil/Grease Resistant No
