EZA-USB485-01 - Banner Engineering EZA-USB485-01

EZA-USB485-01 - Banner
EZA-USB485-01

Price: $177.00
Manufacturer SKU: EZAUSB48501
Manufacturer ID: 83025



Availability: Usually Ships in 3 to 5 Business Days
Part Number: EZA-USB485-01
Qty:

Description

Banner Engineering A-Gage EZ-Array EZA-USB485-01

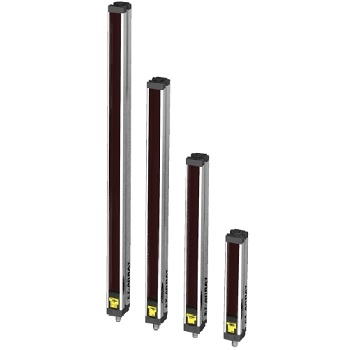

The A-Gage EZ-Array measuring light screen is ideal for application such as on-the-fly product sizing and profiling, edge-guiding and center-guiding, loop tension control, hole detection, parts counting, and similar uses. Emitters and receivers, with arrays available in 10 lengths from 150 to 1800 mm (5.9" to 70'9") long, feature a closely spaced column of beams to provide a precise light screen for measuring applications at a working range of 400 mm to 4 m.

Features
  • A cost-effective measuring light curtain designed for quick and simple installations with the sophistication to handle the toughest sensing applications
  • Excels at high-speed, precise process monitoring and inspection, profiling, and web-guiding applications
  • A comprehensive combination of scanning options
    • 14 measurement ("scan analysis") modes
    • 3 scanning methods
    • Selectable beam blanking
    • Selectable continuous or gated scan initiation
    • Selectable threshold setting for semi-transparent applications
    • 2 analog outputs, 2 discrete outputs, plus Modbus 485-RTU serial output
  • Outstanding 4 meter range with 5 mm beam spacing
  • Excellent 5 mm minimum object detection or 2.5 mm edge resolution, depending on scanning method
  • Receiver user interface for intuitive setup of many common applications:
    • 6-position DIP switch for setting scan mode, measurement mode, analog slope, discrete output 2 option (complementary measurement or alarm operation)
    • 2 push buttons for gain method selection and alignment/blanking
    • 7 Zone LEDs for instant alignment and beam blockage information
    • 3-digit display for sensing information and diagnostics
  • Software GUI available for advanced sensor setup functions
  • Remote teach wire option for alignment, gain methods, inverted display, and DIP switch disable.


pdfDownload the EZA-USB485-01 Quick Start Guide in *.pdf format.

pdfDownload the EZA-USB485-01 Instruction Manual in *.pdf format.
