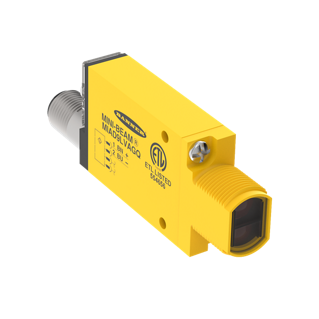

MIAD9LVAGQ - Banner Engineering MINI-BEAM NAMUR: Polarized Retro; Range: 50 mm to 2 m; Input: 5-15V dc; Output: NAMUR; Quick-Disconnect Connector

MIAD9LVAGQ - Banner
MIAD9LVAGQ

Price: $186.00
Manufacturer SKU: MIAD9LVAGQ
Manufacturer ID: 37294



Availability: Normally Stocked
Part Number: MIAD9LVAGQ
Qty:

Description

MIAD9LVAGQ - Banner Engineering MINI-BEAM NAMUR: Polarized Retro; Range: 50 mm to 2 m; Input: 5-15V dc; Output: NAMUR; Quick-Disconnect Connector

Overview

MINI-BEAM sensors for hazardous environments with approved switching amplifiers with intrinsically safe input circuits

  • 5 to 15V dc supply voltage with a constant current output of 1 mA or less in the dark and 2 mA or less in the light condition
  • Intrinsically safe sensors with MINI-BEAM performance and small size
  • Available in opposed, polarized and non-polarized retroreflective, convergent, diffuse and divergent diffuse, and glass fiber optic sensing modes
  • For use with approved switching amplifiers with intrinsically safe input circuits
  • 18 mm threaded barrel or side mounting options
