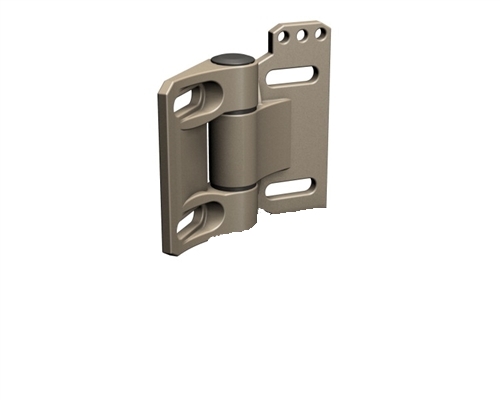

*Note: This is only the blank hinge. Safety switches and accessories are sold separately.*

Overview

SI-HG63 Series Safety Interlock Switches Attached to a Load-Bearing Hinge

• Repositionable safety switch is integrated into a highly robust PBT housing and screwed onto the fine-cast stainless steel or zinc die-cast hinge.
• Stainless steel model can support an axial and radial load of 1800 N (180 Kg); Zinc die-cast can support 1200 N(120 Kg).
• Right-hinge, left-hinge, and right-angle hinge models available; switches can also be converted to operate from the opposite side.
• Switch components are protected from mechanical impact, for superior performance to actuator-activated safety switches; rated IEC IP67.
• Hinge operates to a full 270 degree range of motion; safety switching point (guard-closed position) is adjustable over the full 0-270 degree operating range.

Click to view the SI-HGZ63A specification sheet in *.pdf format
