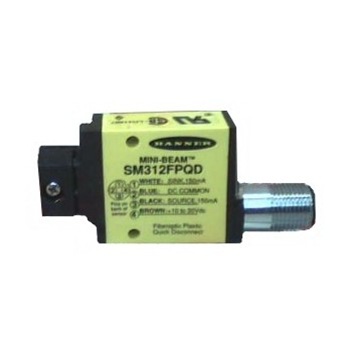

SM312FPMHSQDP - Banner Engineering MINI-BEAM: High Speed Plastic Fiber Optic; Range: depends on fiber used; Input: 10-30V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time =0.3 millisecond; 6 Inch Pigtail QD

SM312FPMHSQDP - Banner
SM312FPMHSQDP

Price: $171.00
Manufacturer SKU: SM312FPMHSQDP
Manufacturer ID: 35900



Availability: Usually Ships in 3 to 5 Business Days
Part Number: SM312FPMHSQDP
Qty:

Description

SM312FPMHSQDP - Banner Engineering MINI-BEAM: High Speed Plastic Fiber Optic; Range: depends on fiber used; Input: 10-30V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time =0.3 millisecond; 6 Inch Pigtail QD
  • Compact, modulated, self-contained visible red fiber optic sensors for 10-30V dc operation
  • Useable in opposed and diffuse fiber optic modes with Banner plastic fiber optic assemblies
  • Switch-selectable for light operate or dark operate
  • Includes Banner's AID alignment system
  • Highly-repeatable 1 millisecond response
  • Both sourcing and sinking outputs (150 mA max. each); continuous overload and short-circuit protected
  • Rugged, epoxy-encapsulated construction: meets NEMA standards 1, 2, 3, 3S, 4, 4X, 6, 12 and 13; IEC IP67
