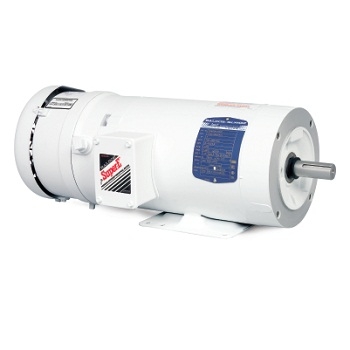

CEWDBM3558T - Baldor 2HP, 1725RPM, 3PH, 60HZ, 145TC, BRAKE, 3532M, Motor Super 'E'
Baldor - CEWDBM3558T
CEWDBM3558T

Price: $2,733.91
Returnable: NOT RETURNABLE
Manufacturer SKU: CEWDBM3558T
Manufacturer ID: 781568392881



Availability: Usually Ships within 24 hours
Part Number: CEWDBM3558T
Qty:

Description Documents & Downloads

Applications: Food processing and other applications where motors receive washdown on a regular basis.

Features: Class F insulated motor with 1.15 service factor or higher that operates within class "B" temperature limits at rated horsepower. Standard NEMA BA dimension, 300 series stainless steel hardware, moisture sealant on bolt heads, between frame and end plates. Neoprene gaskets. Spring-set brake internally connected to the motor. Power off manual release. Resets automatically. Motors have NEMA Premium Efficiency and are inverter-ready. 230-460V brakes are connected in conduit box allowing for separate connection when used with an inverter.
CEWDBM3558T
Additional Product Information
pdfDownload the CEWDBM3558T Data Sheet in *.pdf format
