COM-4-20MA - SymCom 4-20Ma Output Module for use with 777-Accupower
COM-4-20mA - SymCom
COM-4-20MA

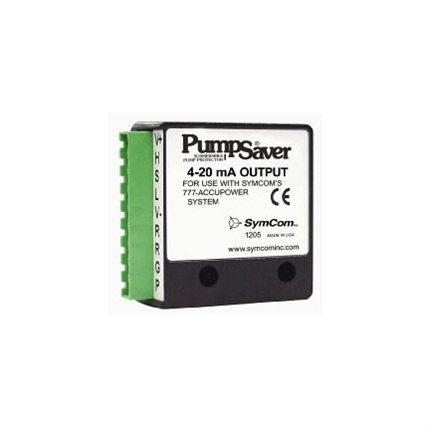

This is a family photo and may not be an accurate representation of the product.

Price: $183.29
Returnable: NOT RETURNABLE
Manufacturer SKU: COM 4-20



Availability: Usually Ships in 3 to 5 Days
Part Number: COM-4-20MA
Qty:

Description

COM-4-20MA - SymCom 4-20Ma Output Module for use with 777-Accupower

The COM 4-20 Family
The 4-20mA output communications module provides an analog output that is proportional to a selected parameter, such as current or power. It must be used with a Model 777-AccuPower.

The 4-20mA module serves two very important functions. Its primary purpose is to convert the communications signals from the microprocessor's 5-volt levels into 4-20mA output, and it electrically isolates the 4-20mA circuit from the high voltages present in SymCom's Model 777-AccuPower.

The signals from the microprocessor of the 4-20mA module go through resistors to provide current limiting before connecting to the 9-pin external connector. Therefore, the 9-pin D-Sub connector on the SymCom unit provides un-isolated CMOS signals and is NOT RS232 or TTL compatible.

Features:

  • Provides a proportional 4-20mA analog ouput
  • Self-powered from the 777-AccuPower unit it connects to
  • Removable quick disconnect plug for easier installation
  • UL listed
  • CSA approved
  • CE compliant
  • 5-year warranty
  • Made in the USA
