MIC-7900-S6A1E - Advantech COMPUTER SYSTEM, Intel Xeon D-1539 1.6GHz, 8 Core

MIC-7900-S6A1E
MIC-7900-S6A1E

Alternative Views:
Price: $2,548.00
Manufacturer SKU: MIC-7900-S6A1E



Availability: Usually Ships in 3 to 5 Business Days
Part Number: MIC-7900-S6A1E
Qty:

Description Technical Specs

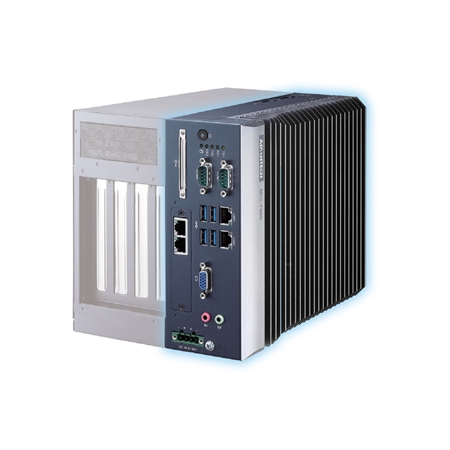

MIC-7900-S6A1E - Advantech COMPUTER SYSTEM, Intel Xeon D-1539 1.6GHz, 8 Core

Features
  • Intel Xeon Processor Broadwell-DE D-1539/D-1559 SoC CPU
  • Wide operating temperature (-20 ~ 50 °C)
  • 9 ~ 36V DC input power range
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (with expansion cable)
  • 1 x 2.5" HDD, 1 x CFast, 1 x M.2
  • Support full range of i-module
  • 4 x GigaLAN and 4 x USB 3.0
  • Supports Advantech's i-module, SUSIAccess, and embedded software APIs

Packing List

Part Number Items
MIC-7900 Intel Xeon Processor Fanless System
1652003234 4-pin Phoenix power connector
1700013095 SATA cable
1700024372-01 SATA power cable
1701200220 Dual DP9 port cable
1960070543N001 2 x Mounting bracket
2061790000 CD-ROM
2001790000 Startup manual En+CN for MIC-7900 1st
2001790010 Startup manual TC for MIC-7900 1st

pdfDownload the MIC-7900-S6A1E brochure in *.pdf format
