CP-5-460 - SymCom 1-Phase Center Pivot Pump Controller 460V
CP-5-460 - SymCom
CP-5-460

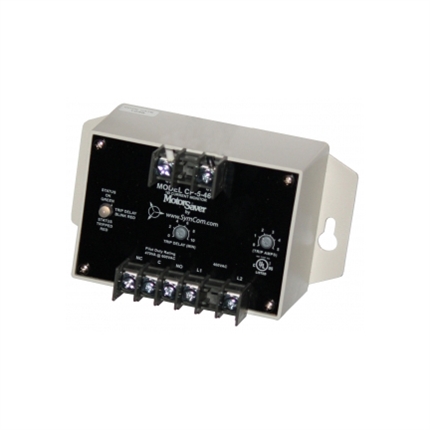

This is a family photo and may not be an accurate representation of the product.

Price: $287.39
Manufacturer SKU: CP5460



Availability: Usually Ships in 3 to 5 Days
Part Number: CP-5-460
Qty:

Description

CP-5-460 - SymCom 1-Phase Center Pivot Pump Controller 460V

The Model CP-5 Family
The Model CP-5 is an undercurrent monitor designed to monitor one leg of a 3-phase system. It is commonly used as a tower monitor on center pivot irrigation systems to detect stalled or jammed towers to prevent overwatering.

The CP-5 has both an adjustable trip level and an adjustable trip delay timer. When the current is sensed, the Model CP-5 activates its output relay, thus starting the motor/pump. When the current in the monitored power line falls below the user-selectable trip point, the unit goes through a trip delay timer and then deactivates the output relay if the monitored current does not recover first.

Features:

  • Ideal as a tower monitor on center pivot irrigation systems
  • Adjustable trip level
  • Adjustable trip delay
